144 Upgrade and Maintenance Manual
RX200 S8
Expansion cards and backup units
Example network adapter D3045

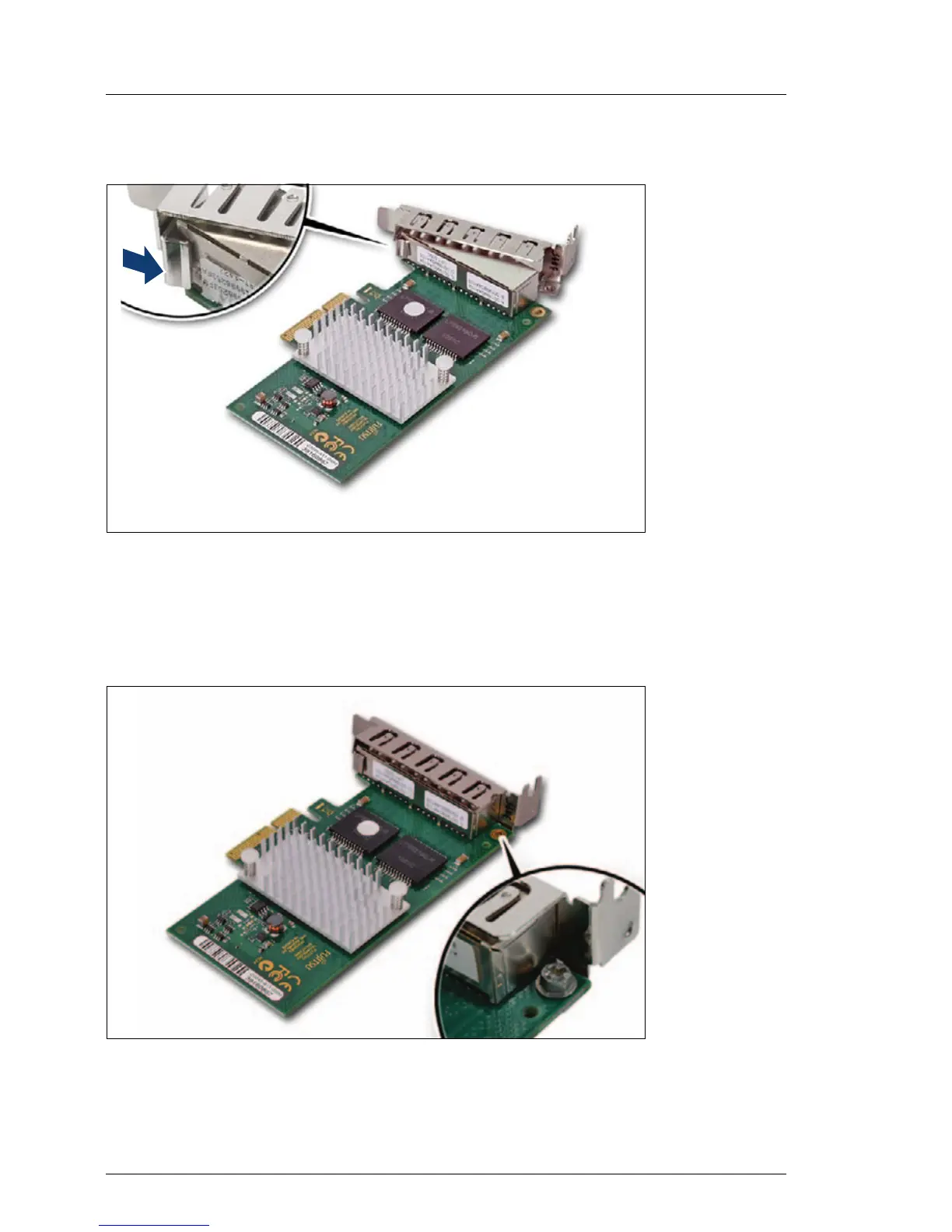

Figure 72: Placing the slot bracket - D3045
Ê Hinge the slot bracket to the plug shell as shown (1).
Ê Fold the slot bracket towards the controller until the threaded mounting tab
is aligned with the screw hole on the controller (2).
Figure 73: Fastening the slot bracket - D3045
Ê Secure the slot bracket to the controller with one M3 x 4.5 mm screw.
