266 Upgrade and Maintenance Manual
RX200 S8
Front panel and front VGA/LAN module
Ê Thread all cables through the opening.

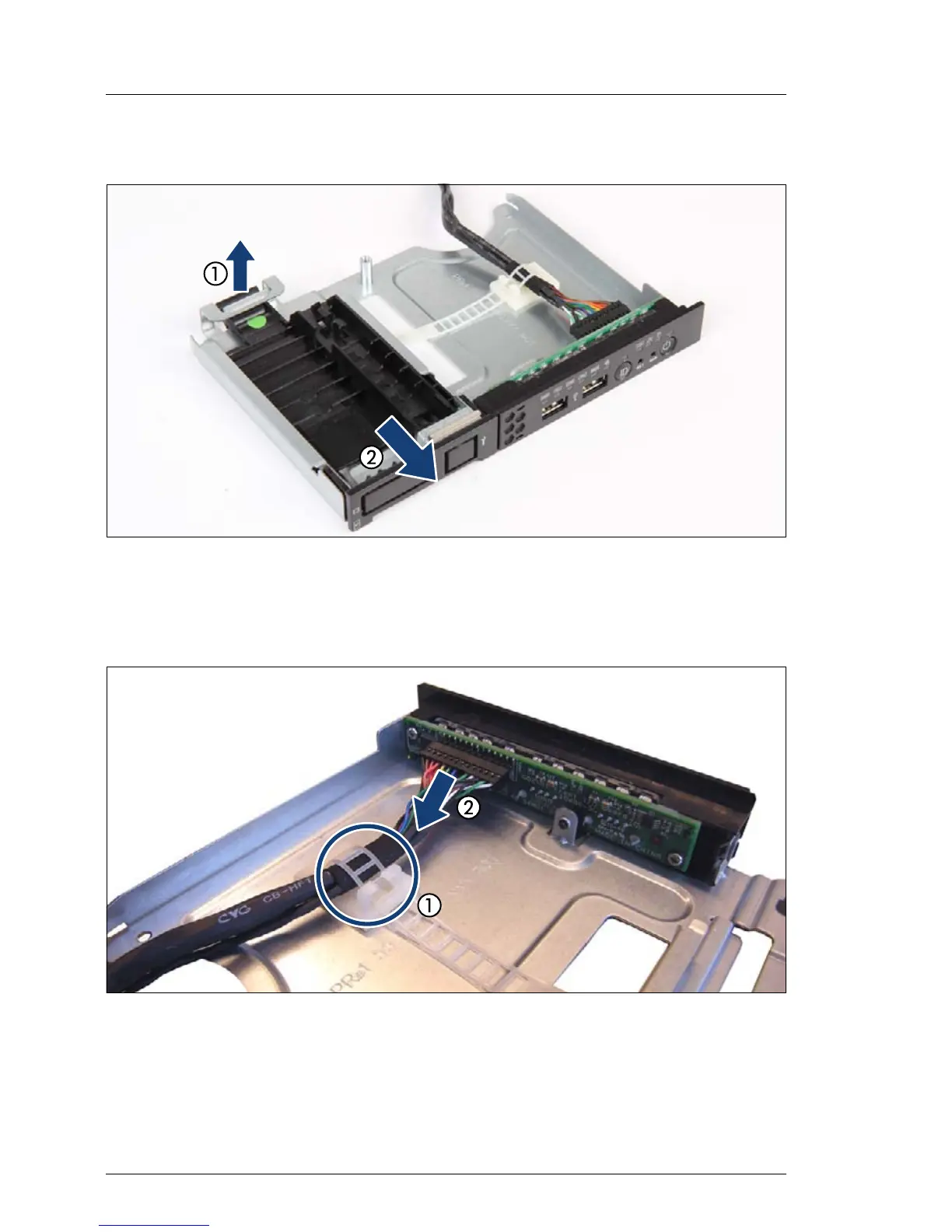

Figure 197: Removing the front VGA/LAN module
Ê Lift up the green touch point (1).
Ê Push the front VGA/LAN module frontward out of the bay (2).
Figure 198: Disconnecting the front panel cable
Ê Open the cable clamp, if applicable (1).
Ê Disconnect the front panel cable (2).
