RX200 S8
Upgrade and Maintenance Manual 267
Front panel and front VGA/LAN module

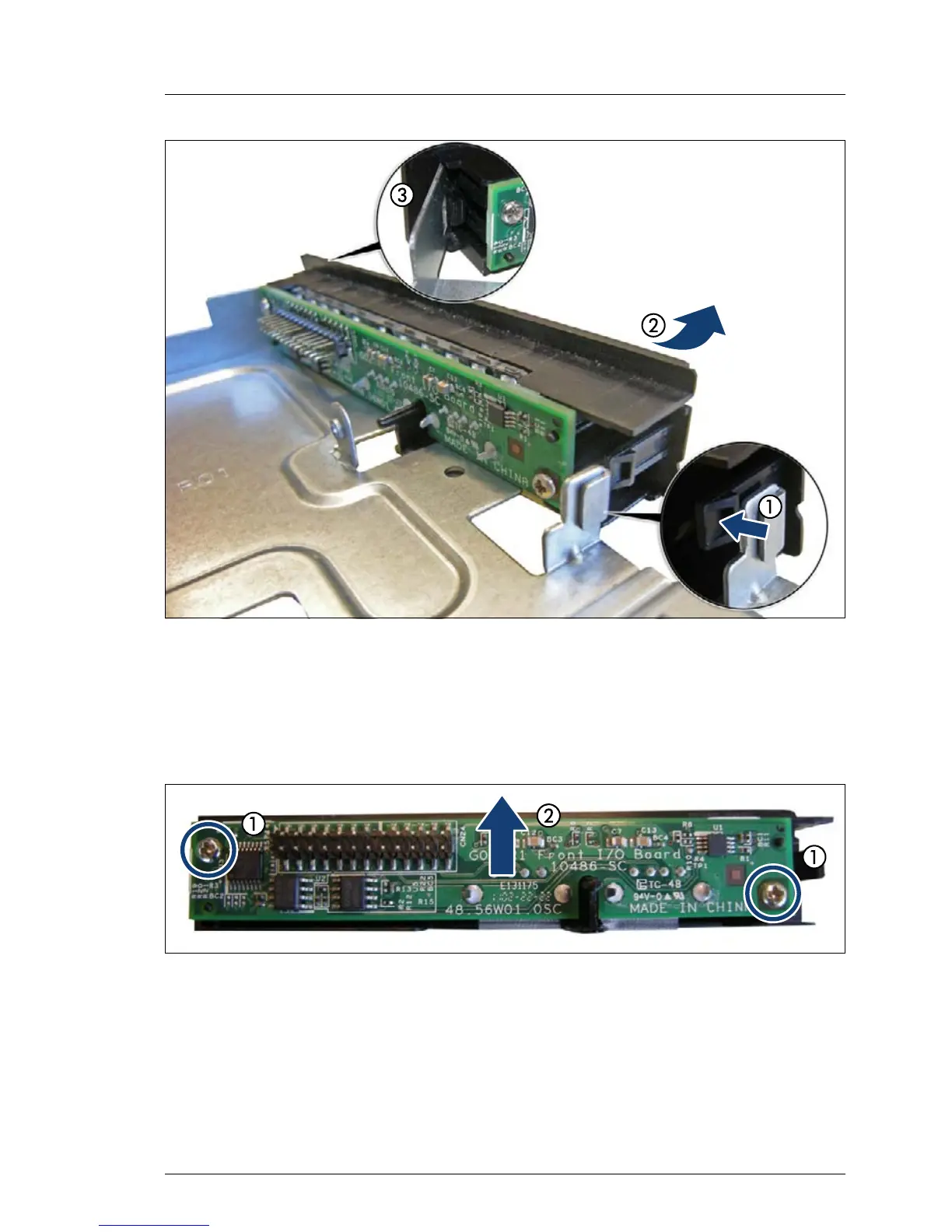

Figure 199: Removing the front panel frame
Ê Press the lock inside (1).
Ê Swivel the front panel frame outward (2).
Ê Unhook the front panel frame on the left side (3) and remove it.
Figure 200: Removing the front panel board
Ê Remove the two screws (1).
Ê Remove the front panel board from the frame (2).
