RX2540 M1 Upgrade and Maintenance Manual 33
Before you start
Screw driver /
Bit insert /
torque
Screw Usage Type
Hexagonal cross
SW5
0.6 Nm
HDD cages
to chassis,
Multibay and
Panelhousin
g
Slot bracket
to chassis,
Fan box
M3 x 4.5 mm
(silver)
C26192-Y10-C67
Hexagonal cross
SW5
0.6 Nm
System
board, Front
panel (2.5-
inch version)
M3 x 6 mm
(silver)
C26192-Y10-C68
Phillips
PH1 / (+) No. 1
0.4 Nm
3.5-inch HDD 6-32 UNC-3A
C26192-Y10-
C200
not available now
Phillips
PH0 / (+) No. 0
0.4 Nm
2.5-inch
HDD/SSDs
M3 x 3.5 mm
(silver)
C26192-Y10-
C102
TPM bit insert
Dedicated TPM
screw driver /
TPM module
fixing tool (for the
Japanese market)
0.4 Nm
TPM screw
One way
head
REM 3 x 15 mm
(black)
C26192-Y10-
C176

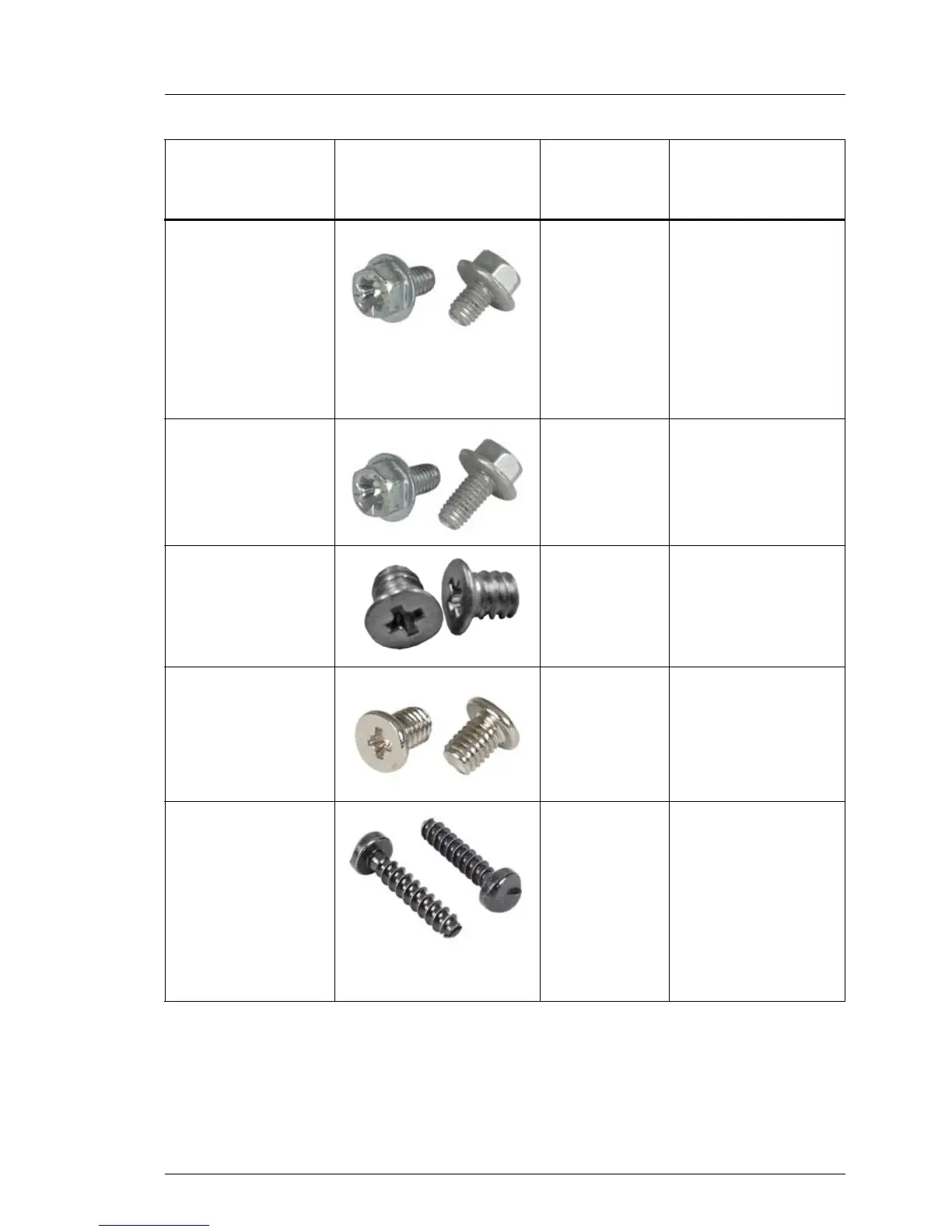

Table 2: List of required tools and used screws
