Before you start
Phillips
PH2 / (+) No. 2
SW6
1 Nm
heat sink captive screw
SW5
0.6 Nm
DynamicLoM
module
Hexagon bolt
M3 x 5 mm (silver)
C26192-Y1-C65
SW5
0.6 Nm
DynamicLoM
module
Hexagon bolt
M3 x 8 mm
(silver)
C26192-Y1-C66
SW5
0.6 Nm
DynamicLoM
module metal
slot cover
Front VGA
card
M3 x 3.5 mm
(silver)
C26361-B121-C1
SW5
0.6 Nm
Rack
mounting
bracket
M3 x 4.5 mm
Phillips
PH1
0.4 Nm
2.5-inch HDD
in 3.5-inch
mounting
frame
M3 x 4 mm
(silver)
A3C40142649
SW5
0.6 Nm
stabilizer bar captive screw
Screw driver /
Bit insert /
torque
Screw Usage Type

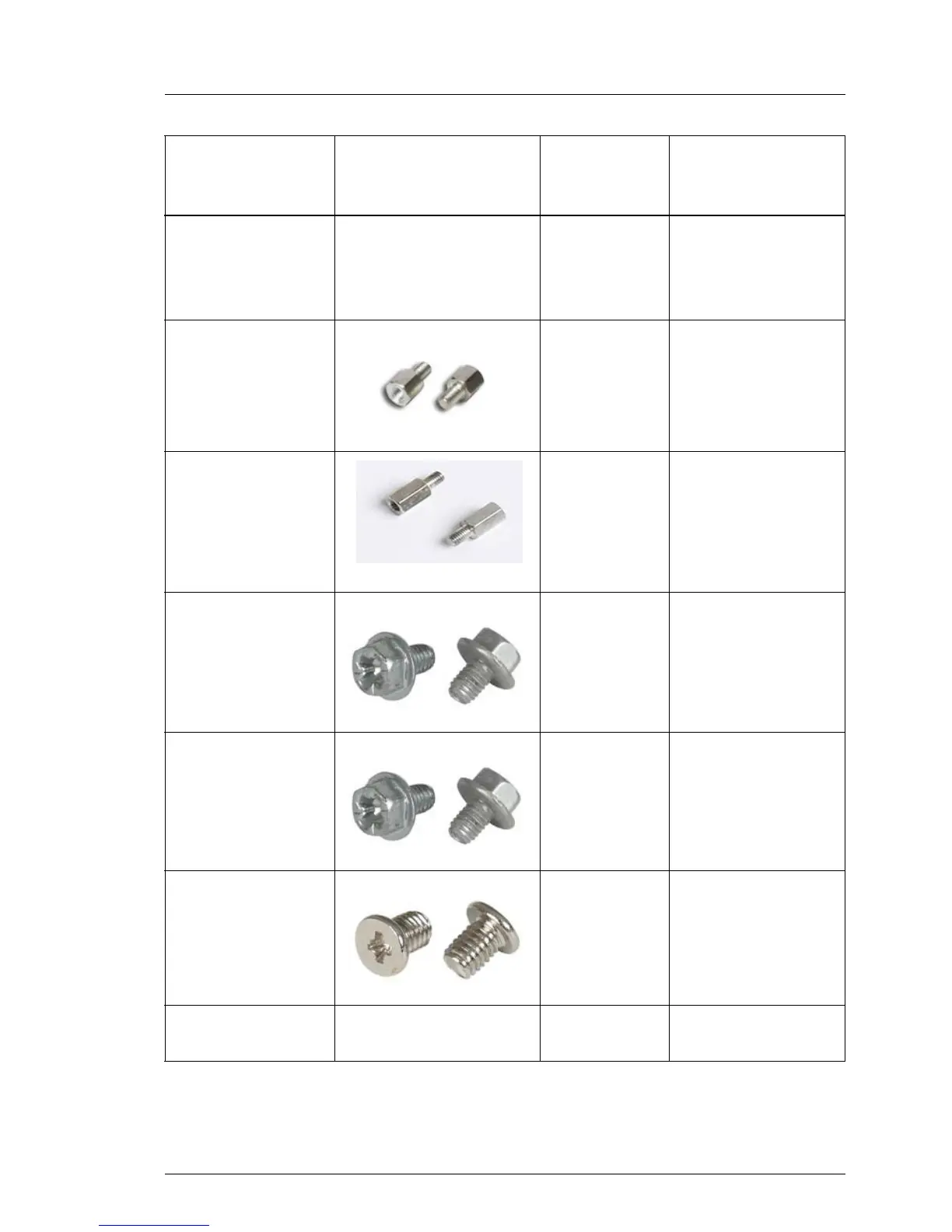

Table 2: List of required tools and used screws
