Installing the new riser card

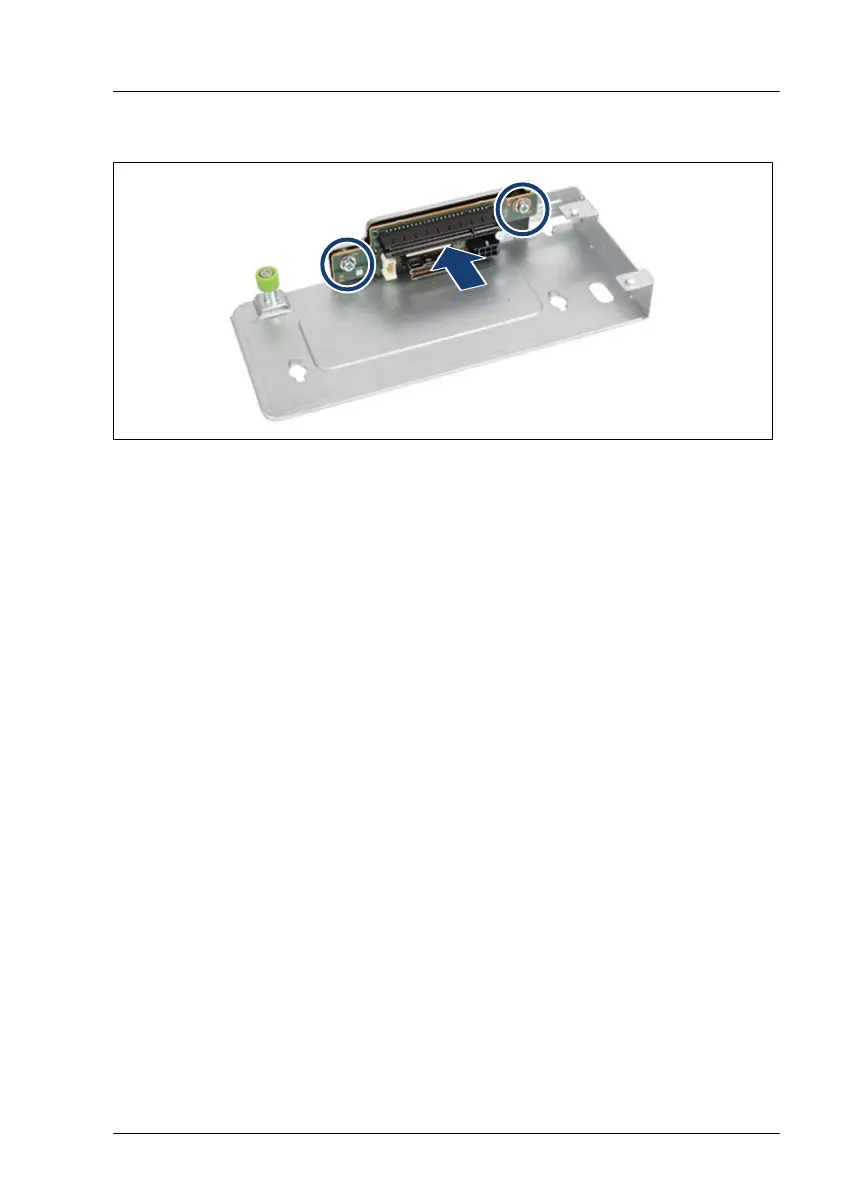

Figure 177: Installing the riser card
▶
Insert the riser card.
▶
Fasten the riser card with two screws (see circles).
▶
Install the internal RAID riser card, see "Installing the RAID controller" on
page 300.
▶
Install the internal RAID riser module, see "Installing an internal RAID riser
module" on page
297.
Concluding steps
▶
"Installing the fan cage" on page 77.
▶
"Reassembling" on page 59.
▶
"Connecting the power cord" on page 65.
▶
"Switching on the server" on page 71.
▶
If applicable, "Installing the front cover with lock" on page 71.
Expansion cards and backup units
RX2540 M7 Upgrade and Maintenance Manual 309
