TX1320 M4 Upgrade and Maintenance Manual 103

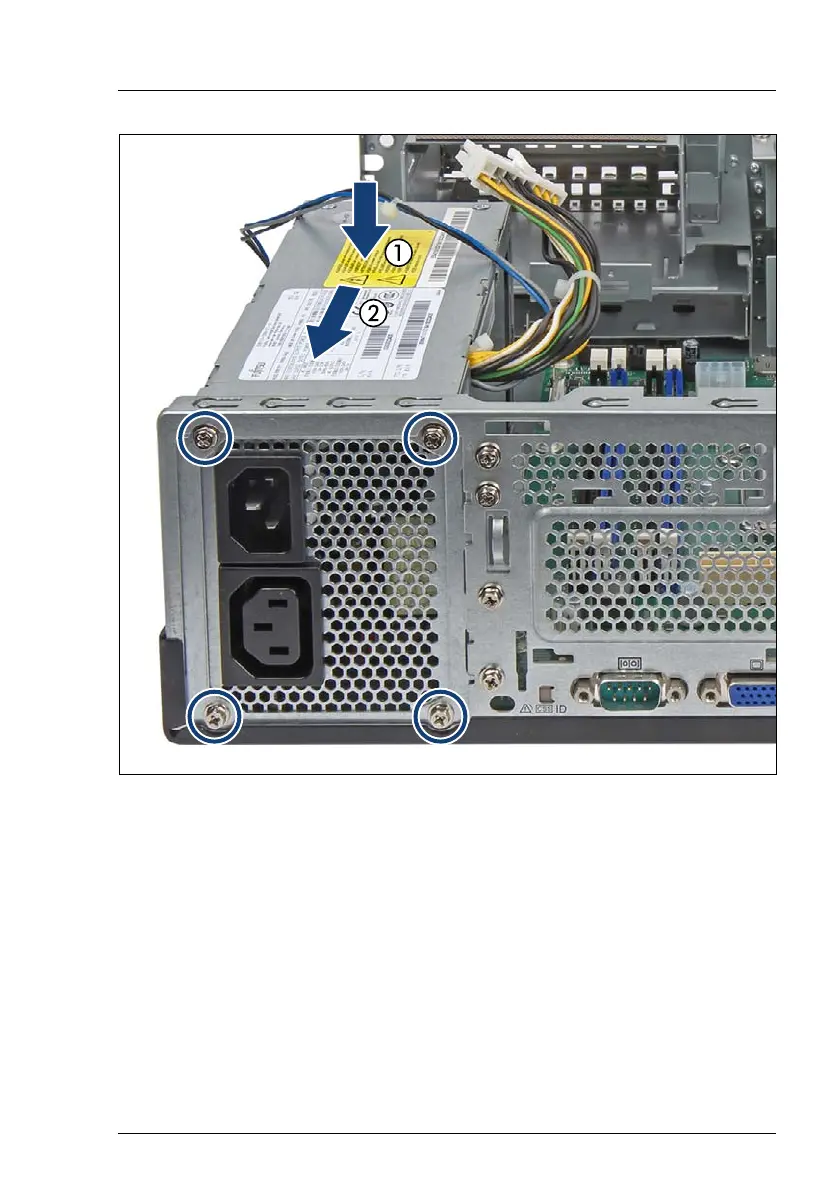

Figure 26: Installing the standard PSU
Ê Insert the PSU into the chassis leaving a gap of about 3 cm to the rear
chassis wall (1).
Ê Ensure that the hooks on the chassis (see circles in figure 25) engages with
the notch on the lower surface of the PSU.
Ê Push the PSU towards the rear of the chassis (2).
Ê Fasten the PSU to the chassis with four screws (see circles).
