TX1320 M4 Upgrade and Maintenance Manual 199
Expansion cards and backup units

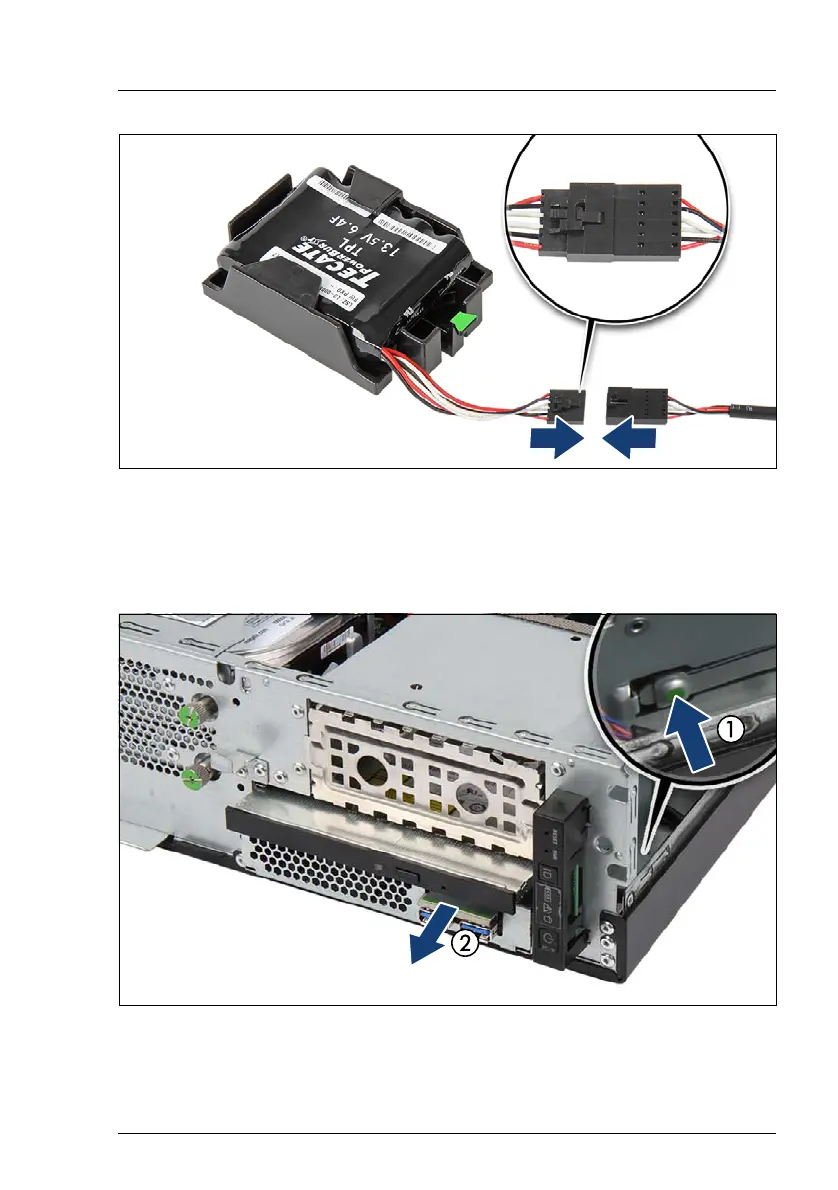

Figure 105: Connecting the FBU adapter cable to the FBU
Ê Connect the FBU cable to the FBU adapter cable.
9.5.1.3 Removing the FBU tray
Figure 106: Removing the FBU holder
Ê Press on the green tab (1 close-up) and push the FBU tray from inside of the
chassis in order to take it out of the bay (2).
