12.2.1.2 Removing the ODD filler cover

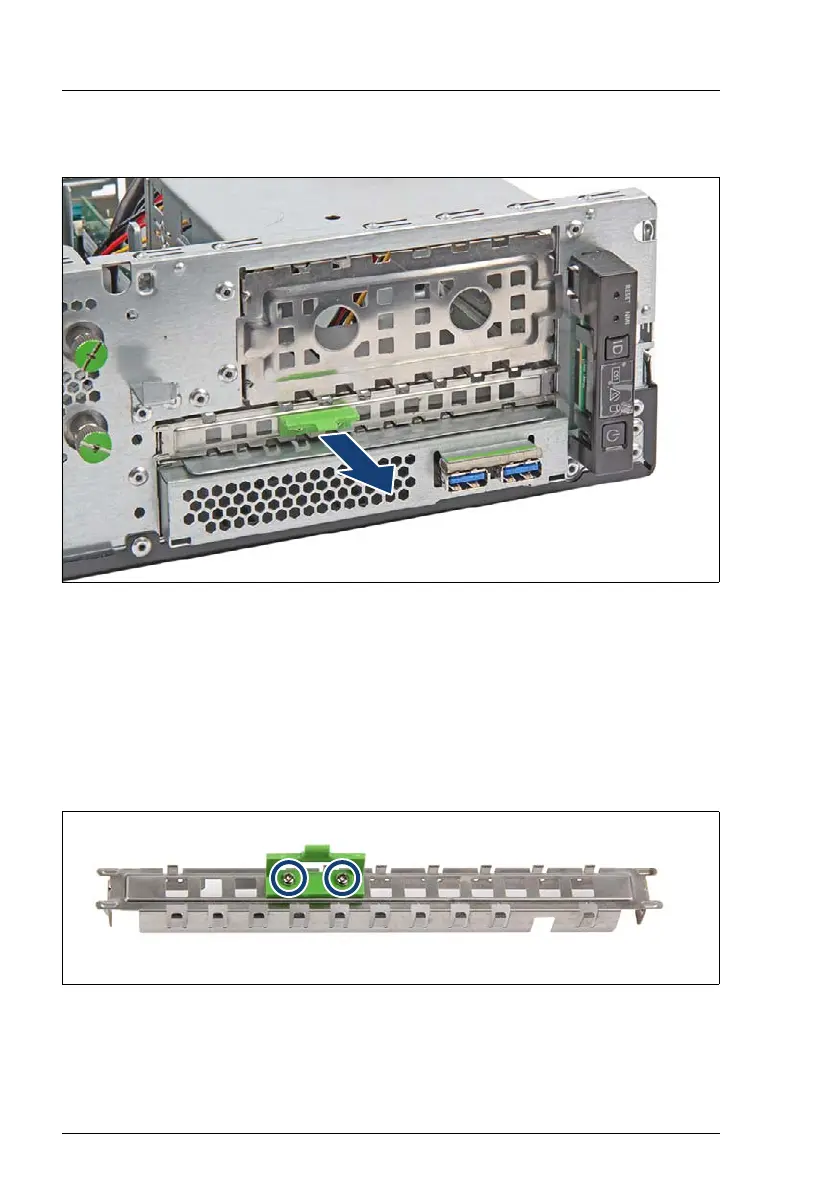

Figure 139: Removing the ODD filler cover
Ê Grip the green ODD latch of the ODD filler cover (see arrow), pull out the
cover and remove it from its installation bay.
V CAUTION!
Save the ODD filler cover for future use.
Always replace dummy modules into unused drive bays to comply with
applicable EMC regulations and satisfy cooling requirements.
Figure 140: Removing the ODD latch
Ê Unscrew and remove the green ODD latch (see circles).
