TX1320 M4 Upgrade and Maintenance Manual 99
6.2 Standard power supply
6.2.1 Replacing the standard PSU
6.2.1.1 Preliminary steps
I You are advised to perform this routine with the server in a horizontal
position.
Ê "Locating the defective server" on page 47
Ê "Suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 51
6.2.1.2 Removing the defective standard PSU

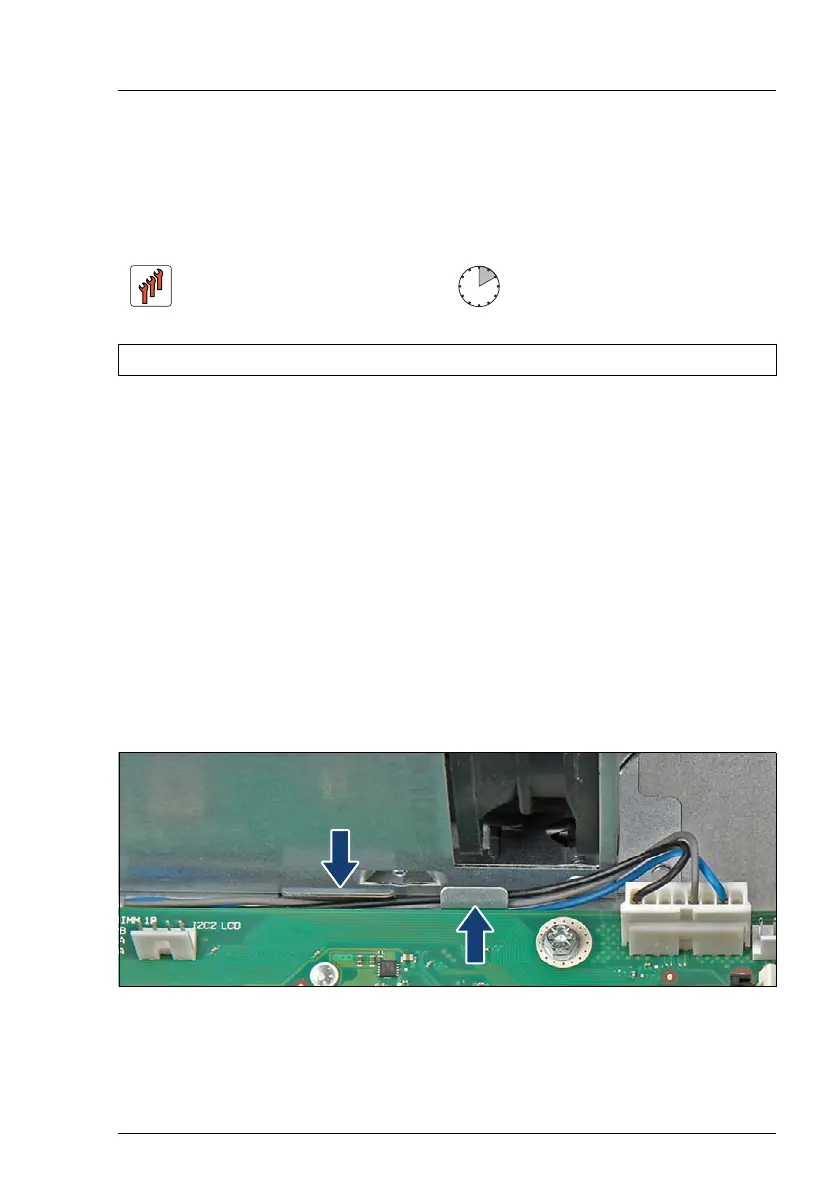

Figure 22: Power cable removing
Ê Remove the power signal cable from the two retainers (sse arrows).
Field Replaceable Unit
(FRU)
Hardware: 10 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
