Fujitsu PRIMERGY TX1320 M4 - Installing 3.5-Inch Non Hot-Plug Hdds; Preliminary Steps; Installing a 3.5-Inch Non Hot-Plug HDD

134 Upgrade and Maintenance Manual TX1320 M4
Hard disk drives (HDD) and solid state drives (SSD)
7.3.2 Installing 3.5-inch non hot-plug HDDs
7.3.2.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 51
Ê "Configuration with up to two 3.5-inch HDDs" on page 133
7.3.2.2 Installing a 3.5-inch non hot-plug HDD

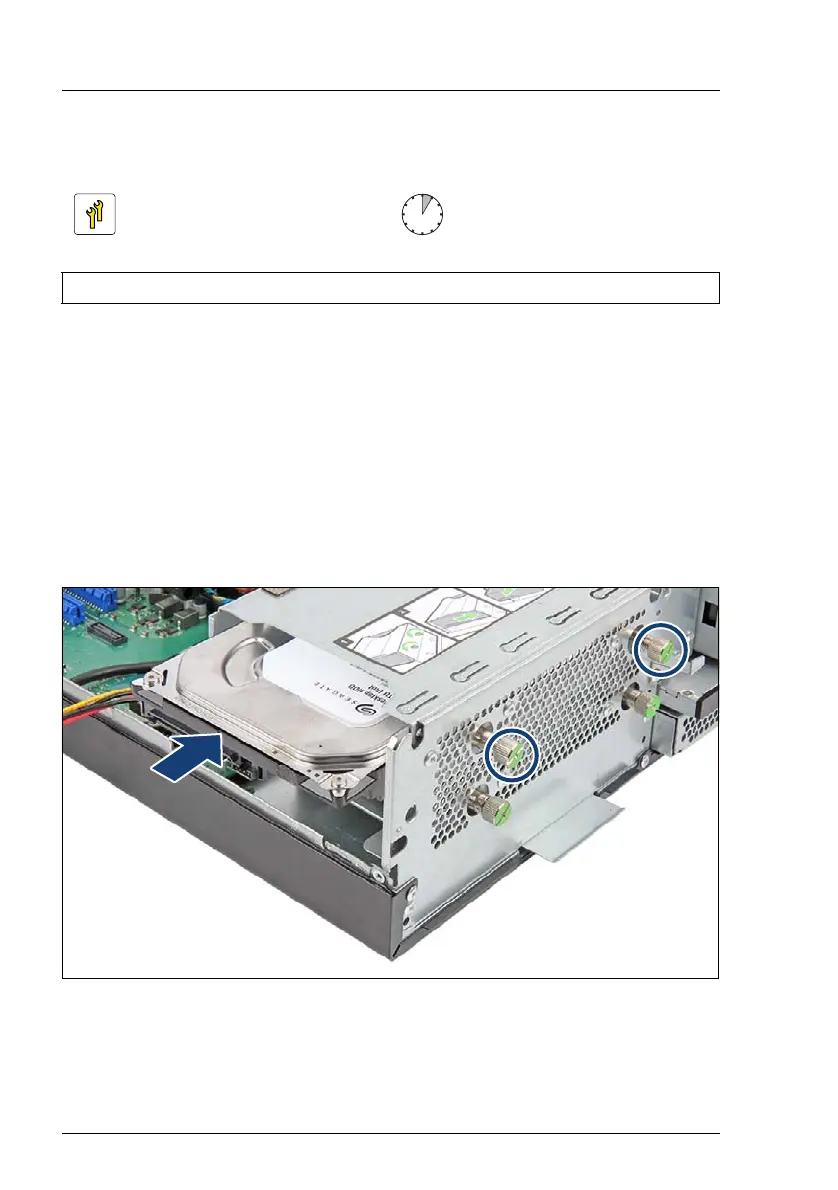

Figure 52: Inserting the 3.5-inch non hot-plug HDD (A)
Ê Loosen the two knurled screws (see circles).
Ê Insert the non hot-plug HDD into an HDD bay and carefully push back as far
as it will go (1).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
