264 Upgrade and Maintenance Manual TX1320 M4
Front panel
13.1.1.3 Installing the front panel module

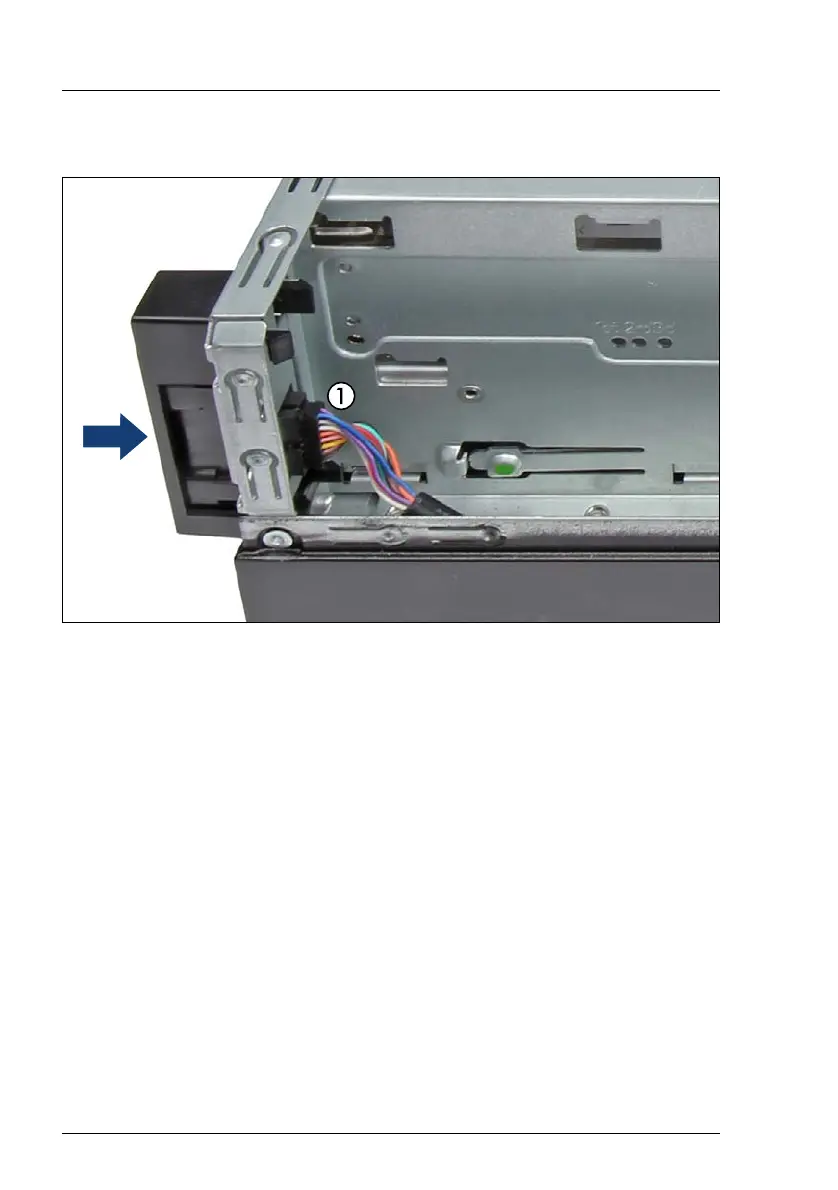

Figure 157: Inserting the front panel module
Ê Insert the front panel module as shown and carefully push in until it locks in
place (see arrow).
Ê Connect the front panel cable to the front panel module (1).
