TX1320 M4 Upgrade and Maintenance Manual 165
Fans
8.2.1.2 Removing the HDD fan module

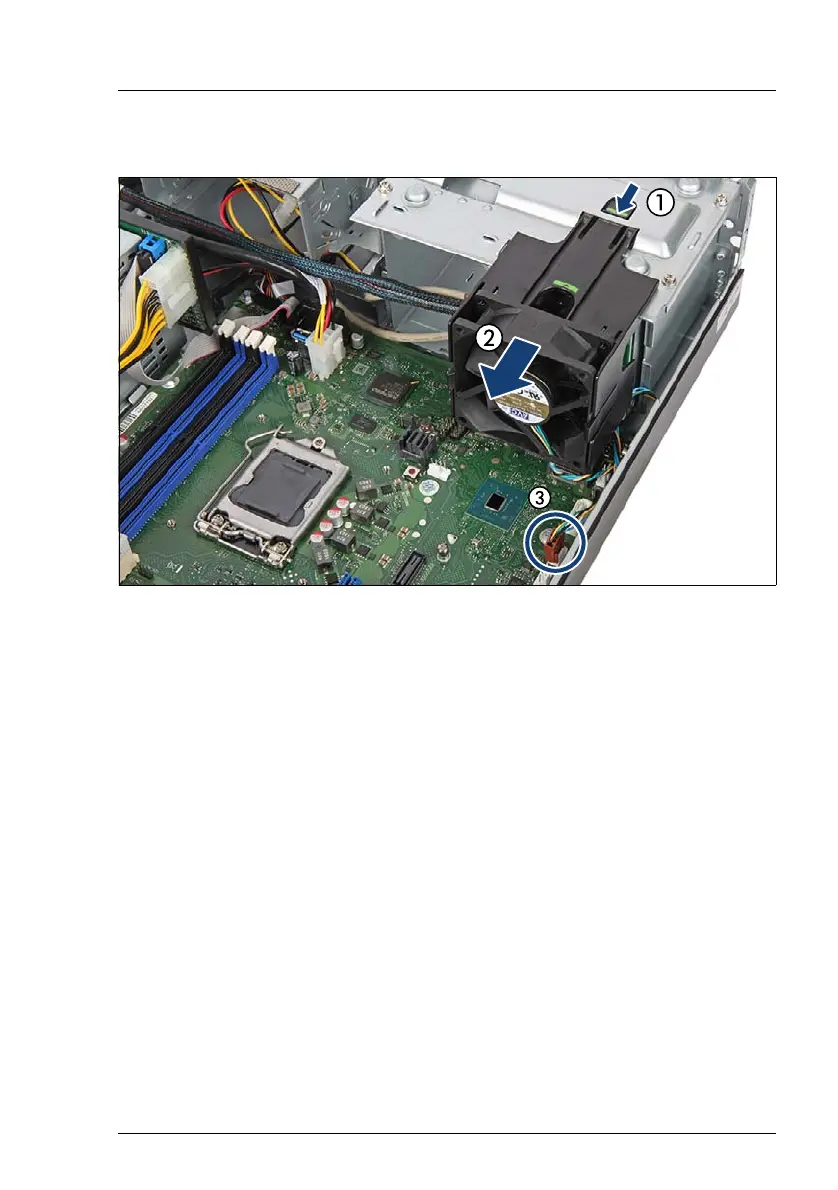

Figure 73: Removing the HDD fan module fan module
Ê Press on the green tab (1) and remove the HDD fan module from the HDD
cage (2).
Ê Disconnect the fan cable from system board (3).
