170 Upgrade and Maintenance Manual TX1320 M4
8.3.1.3 Installing the HDD fan module

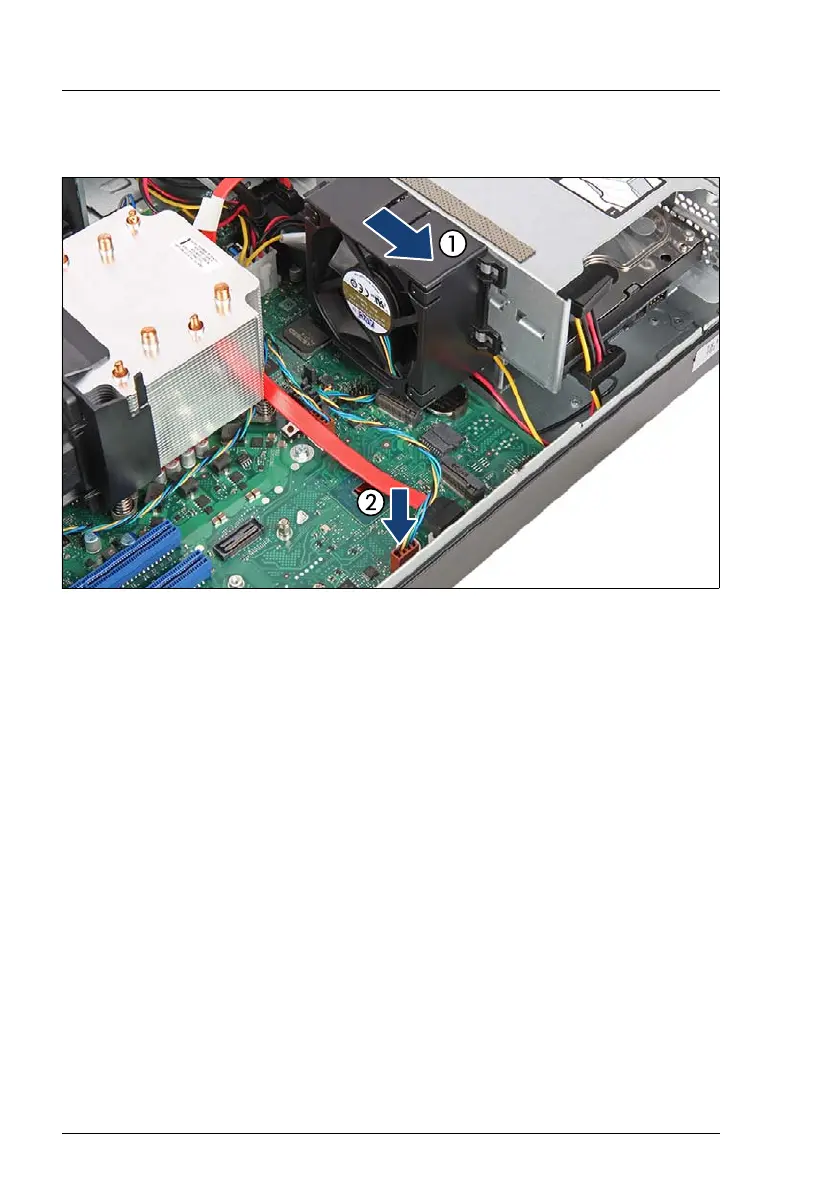

Figure 77: Installing the HDD fan module (3.5-inch)
Ê Insert the HDD fan module into the chassis.
Ê Engage the HDD fan at the rear of the HDD cage and slide it to the right (1)
until it locks in place.
Ê Connect the fan cable to system board connector "FAN2" (2).
8.3.1.4 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
Ê "Performing a fan test" on page 94
