Fujitsu PRIMERGY TX1320 M4 - Disconnecting the FBU Cable from the FBU

TX1320 M4 Upgrade and Maintenance Manual 203
Expansion cards and backup units

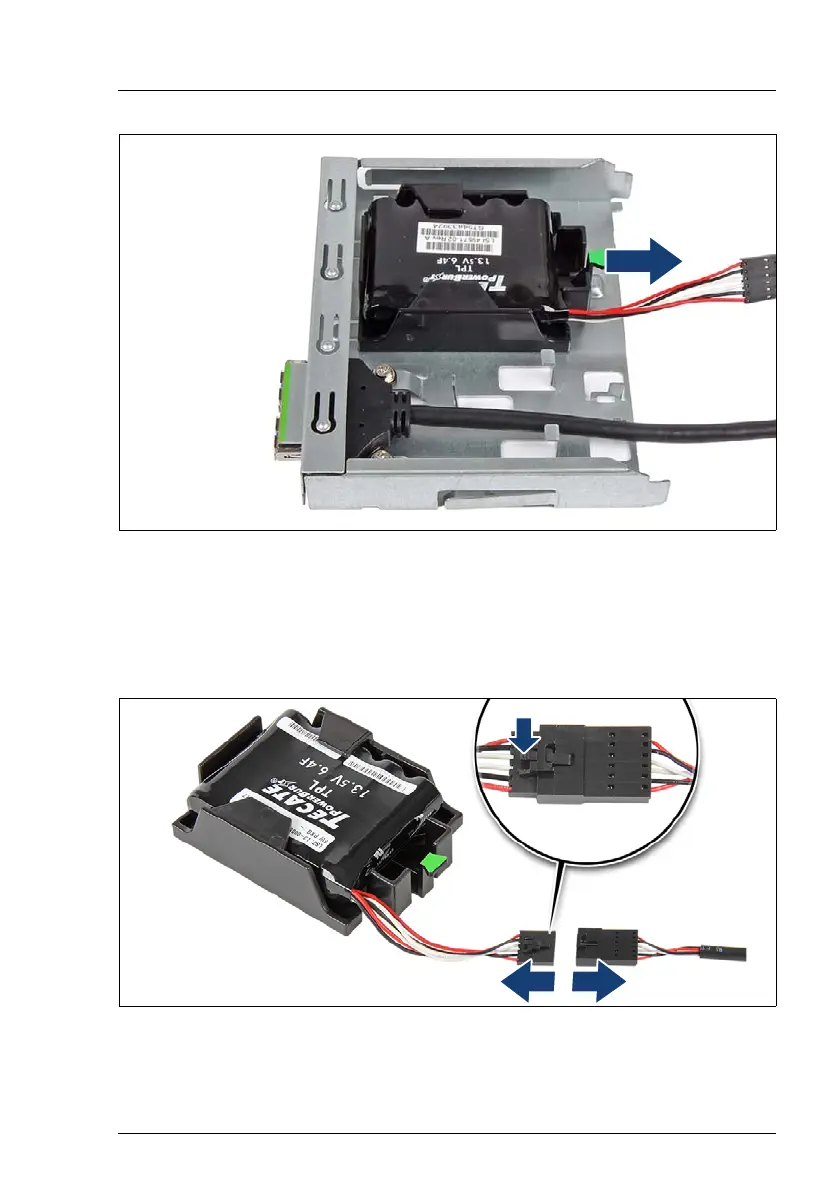

Figure 109: Removing the FBU
Ê Slide the FBU in the direction of the arrow and remove the FBU from the
FBU tray.
9.5.2.3 Disconnecting the FBU cable from the FBU
Figure 110: Disconnecting the FBU cable from the FBU
Ê Disconnect the FBU cable from the FBU.
