13.2.2.3 Removing the front USB connector from FBU tray
Ê Remove the FBU tray, see section "Removing the FBU tray" on page 265.

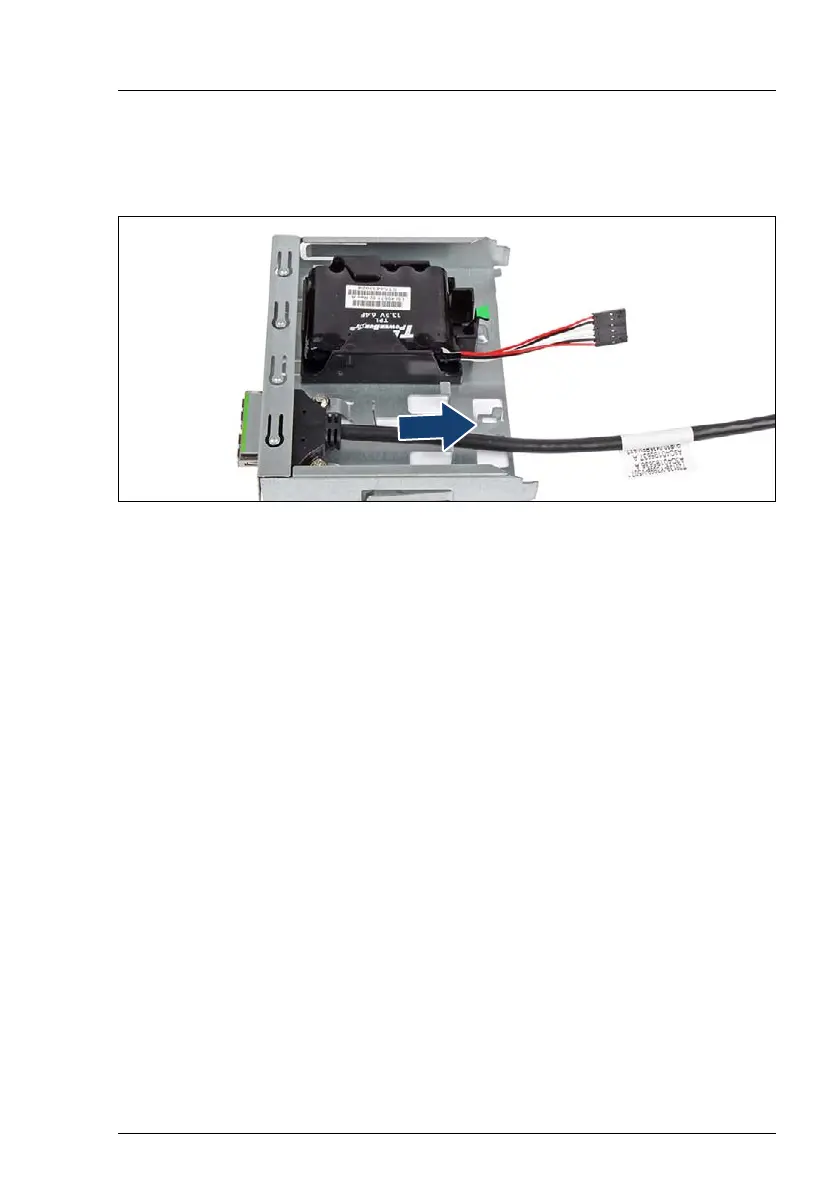

Figure 162: Removing the front USB connector
Ê Remove the two screws.
Ê Remove the front USB connector from the FBU tray (see arrow).
13.2.2.4 Installing the FBU tray
Ê Install the FBU tray, see section "Installing the FBU tray" on page 204.
Ê If applicable, connect the FBU adapter cable to the TFM, see section
"Installing the new TFM" on page 194.
13.2.2.5 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
