TX1320 M4 Upgrade and Maintenance Manual 155
Hard disk drives (HDD) and solid state drives (SSD)
7.4.7.4 Connecting cables
Example: Connecting a PCIe backplane (backplane 1)

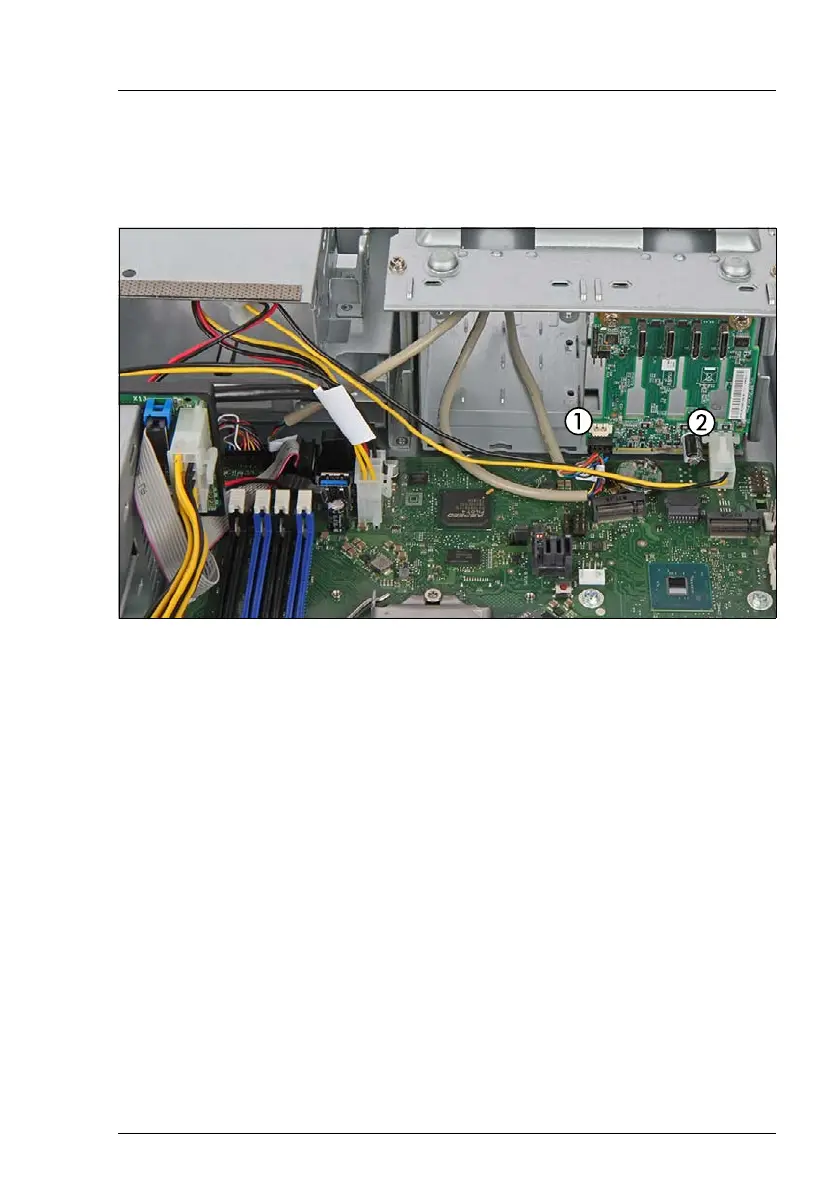

Figure 67: Example: Connecting cables - OOB and power to backplane 1
Ê Connect the cables to the backplane:
Ê If applicable, place the free connectors in a empty bay.
1 If applicable, OOB cable
2 Power cable
