54 Upgrade and Maintenance Manual TX1320 M4
Basic hardware procedures
4.4.2 Removing the accessible drive bay cover

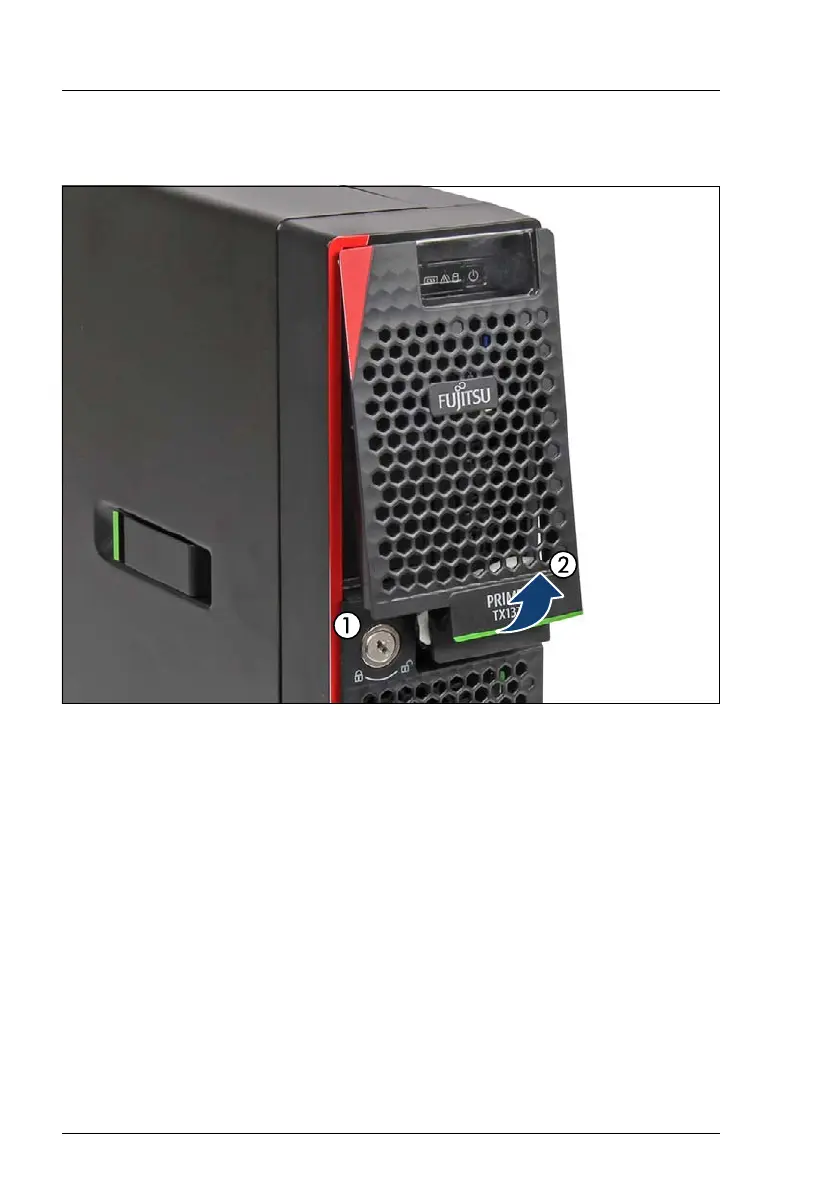

Figure 7: Removing the accessible drive bay cover
Ê Open the accessible drive bay cover carefully in the direction of the arrow (2)
until the cover is released and remove it.
