172 Upgrade and Maintenance Manual TX1320 M4
Expansion cards and backup units
9.1 Basic information

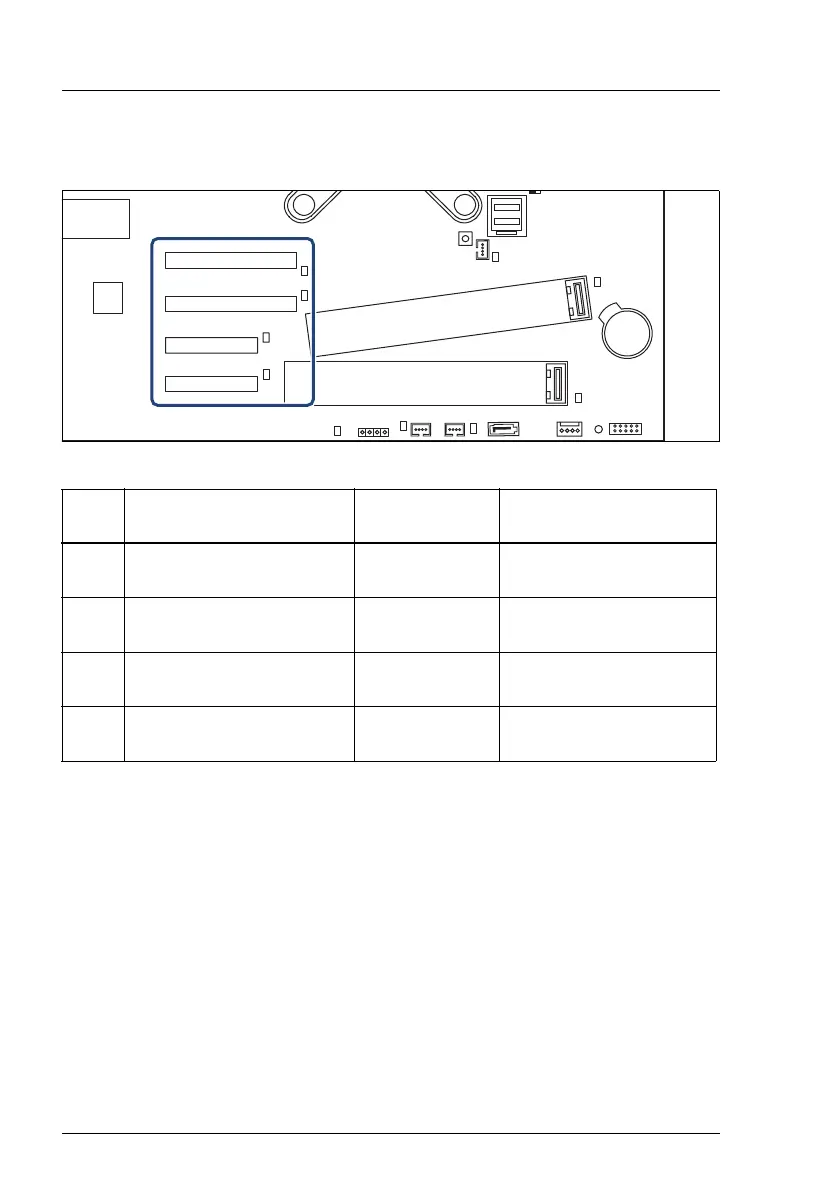

Figure 78: PCI slot overview
I For system relevant information, see the hardware configurator of your
server available online at the following address:
http://ts.fujitsu.com/products/standard_servers/index.html
For Japan:
http://www.fujitsu.com/jp/products/computing/servers/primergy/
PCI
slot
Type Length / Form
factor
Function
1 PCIe Gen3 x1 (mech. x4)
167,65 mm /
low profile
Slot for optional PCIe
expansion cards
2
PCIe Gen3 x4 (notched)
(mech. x4)
167,65 mm /
low profile
Slot for optional PCIe
expansion cards
3
PCIe Gen3 x8 (notched)
(mech. X8)
167,65 mm /
low profile
Dedicated slot for boot
controllers
4
PCIe Gen3 x8
(notched)(mech. X8)
167,65 mm /
low profile
Dedicated slot for PCIe
graphics card
Slot 2
Slot 1
Slot 4
Slot 3
RCVR
1
2 /
3.1 Gen 2
Battery
TPM
IntrSATA ODD
FAN2
FAN3
HDD LED
Intel
i210
Indicate
SATA
0-3
CSS
FAN1
M.2
SSD1
M.2
SSD2
