13.2.1.3 Installing the front USB connector

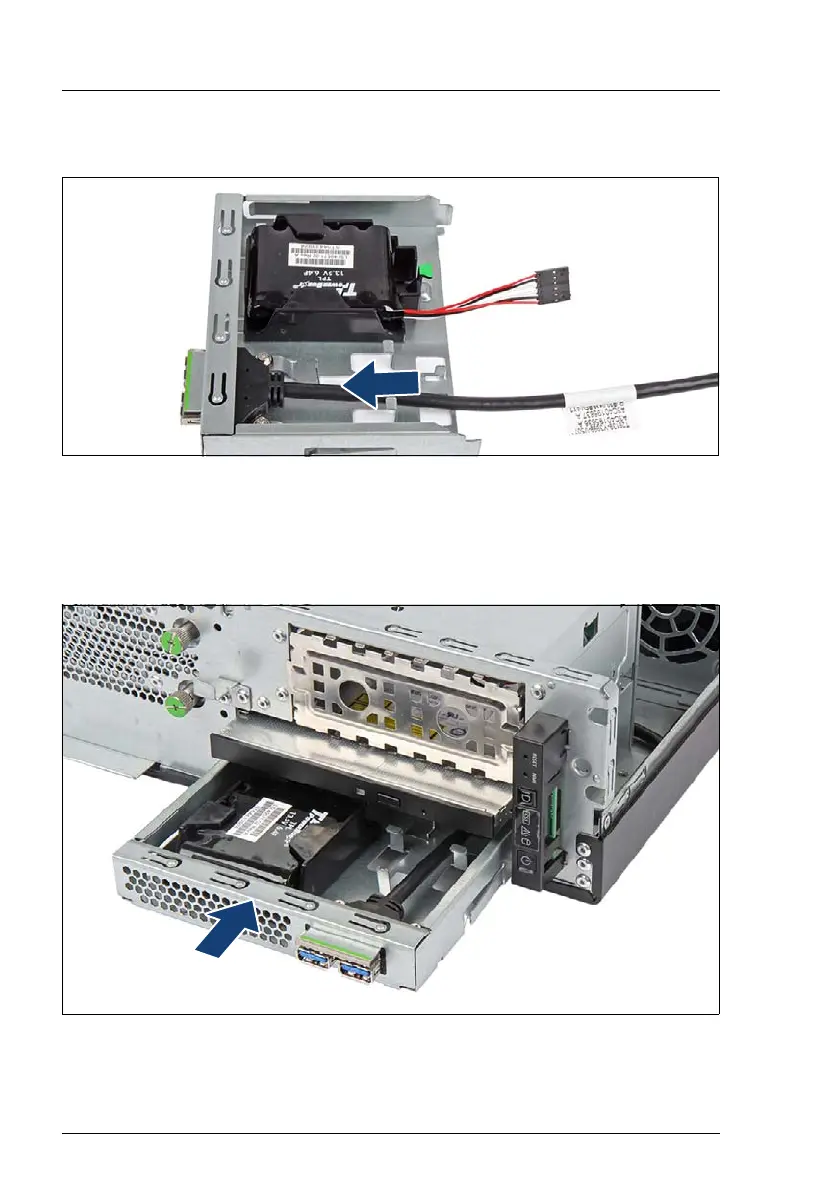

Figure 158: Installing the front USB connector
Ê Place the front USB connector in the FBU tray and slide it in the direction of
the arrow until it locks in place.
Ê Fasten the USB front connector with two screws.
Figure 159: Installing the front USB connector
Ê Insert the FBU tray into the corresponding bay and slide it in as far as it will
go (see arrow).
