TX1320 M4 Upgrade and Maintenance Manual 181
Expansion cards and backup units
Ê If applicable, install the slot bracket, see section "Installing a slot bracket" on
page 173.
9.4.1.2 Removing a PCI slot cover

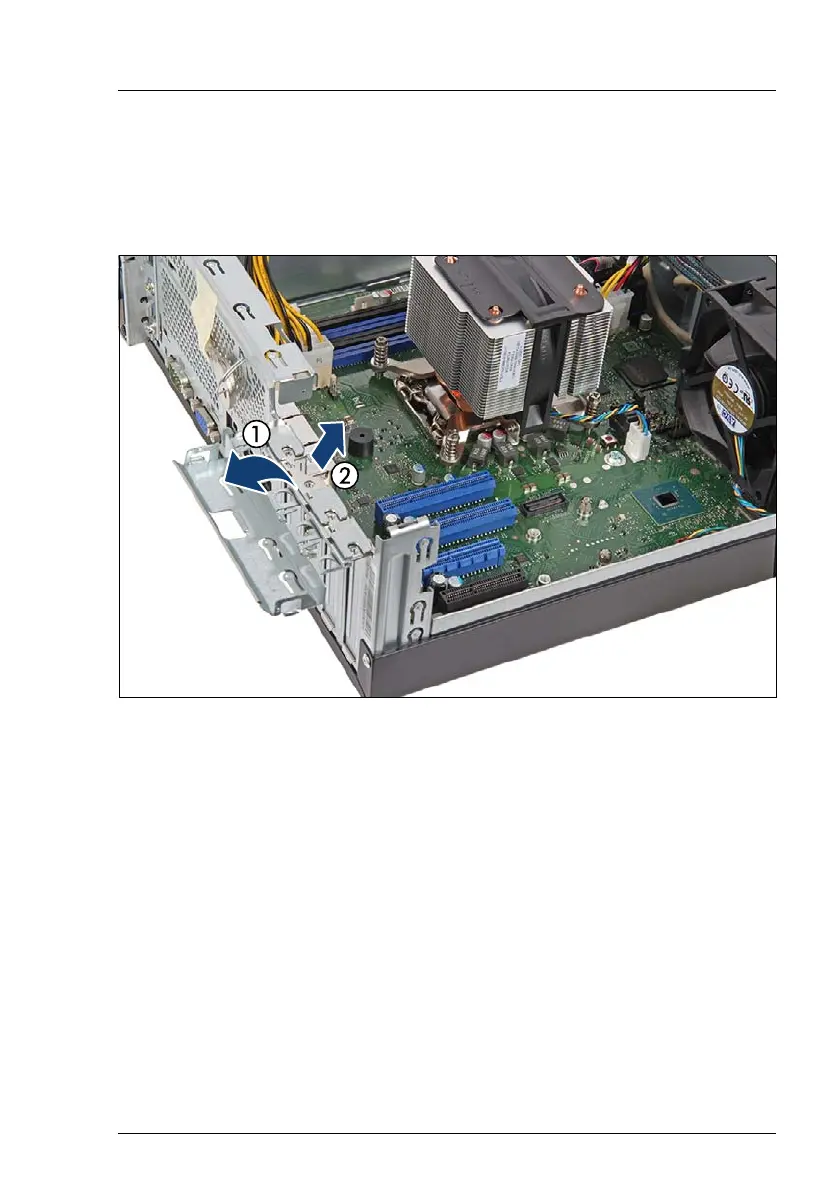

Figure 90: Removing the PCI slot cover
Ê Fold up the PCI slot cover clamp (1).
Ê Remove the PCI slot cover (2).
V CAUTION!
Keep the slot cover for future use. Always replace slot covers into
unused PCI slot openings to comply with applicable EMC regulations
and satisfy cooling requirements.
9.4.1.3 Installing the expansion card
I If an optional FBU will be installed in the system, install a TFM on the
RAID controller, before proceeding.
Ê Remove the expansion card from its protective packaging.
