182 Upgrade and Maintenance Manual TX1320 M4
Expansion cards and backup units
I For further instructions regarding controller settings, see the
accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card, see
section "Installing a slot bracket" on page 173.
Ê If applicable, connect internal cables to the expansion card.
I For the cable plan, see chapter "Appendix B" on page 341.

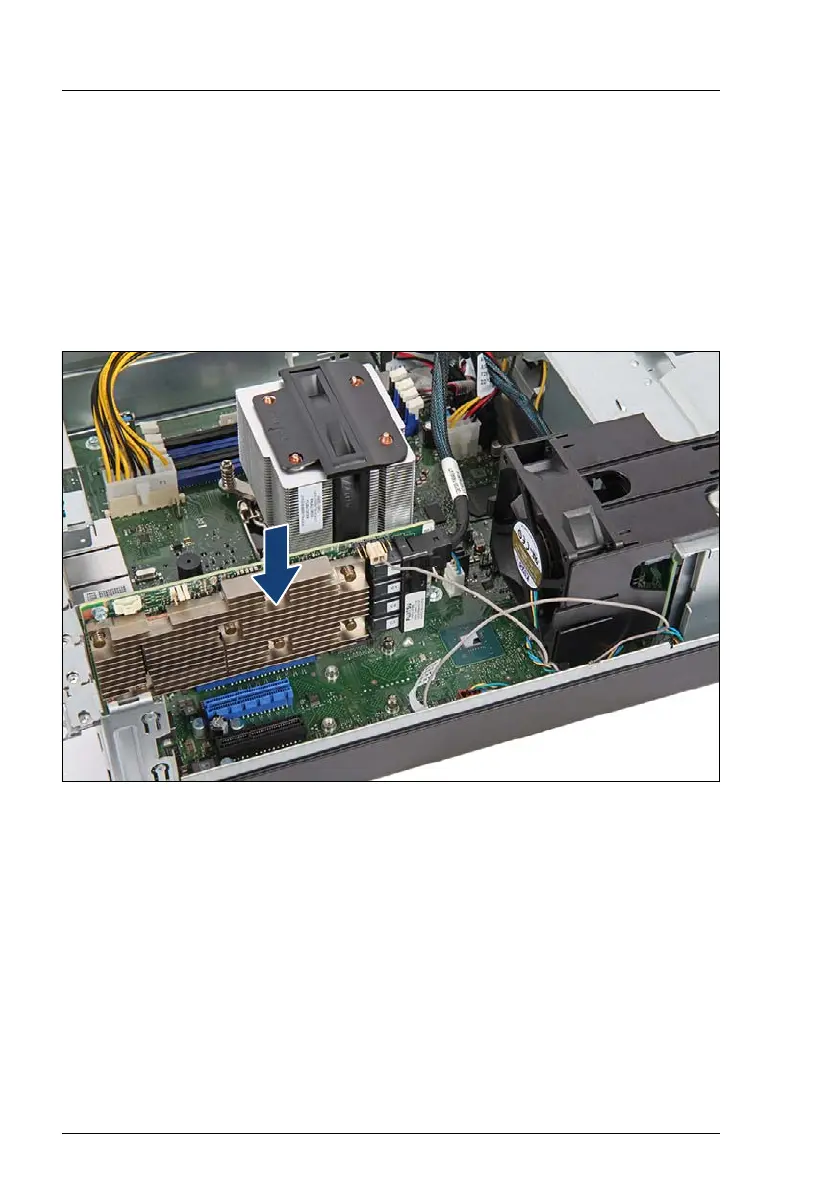

Figure 91: Installing EP5x0i controller
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot (see arrow).
Ê Fold down slot cover clamp until it locks in place.
Ê If applicable, connect a FBU to the expansion card, see section "Installing
an FBU" on page 197.
