Fujitsu PRIMERGY TX1320 M4 - Removing a Front USB Connector; Preliminary Steps; Disconnecting the Front USB Connector

268 Upgrade and Maintenance Manual TX1320 M4
Front panel
13.2.2 Removing a Front USB connector
13.2.2.1 Preliminary steps
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 51
13.2.2.2 Disconnecting the front USB connector

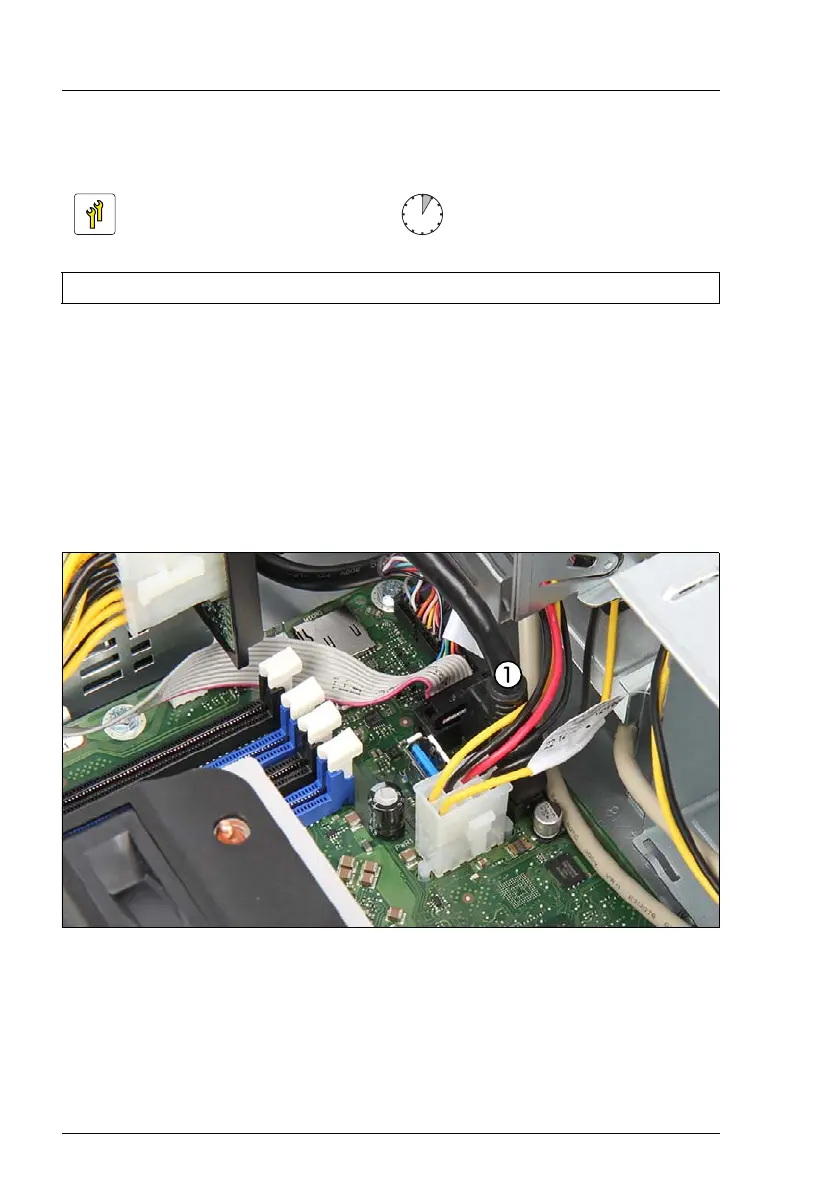

Figure 161: Disconnecting front USB connector cable
Ê Disconnect the cable end of the front USB connector (1).
Ê If applicable, disconnect the FBU adapter cable from the TFM, see section
"Removing the defective TFM" on page 192.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
