200 Upgrade and Maintenance Manual TX1320 M4
Expansion cards and backup units
9.5.1.4 Installing the FBU into the FBU tray

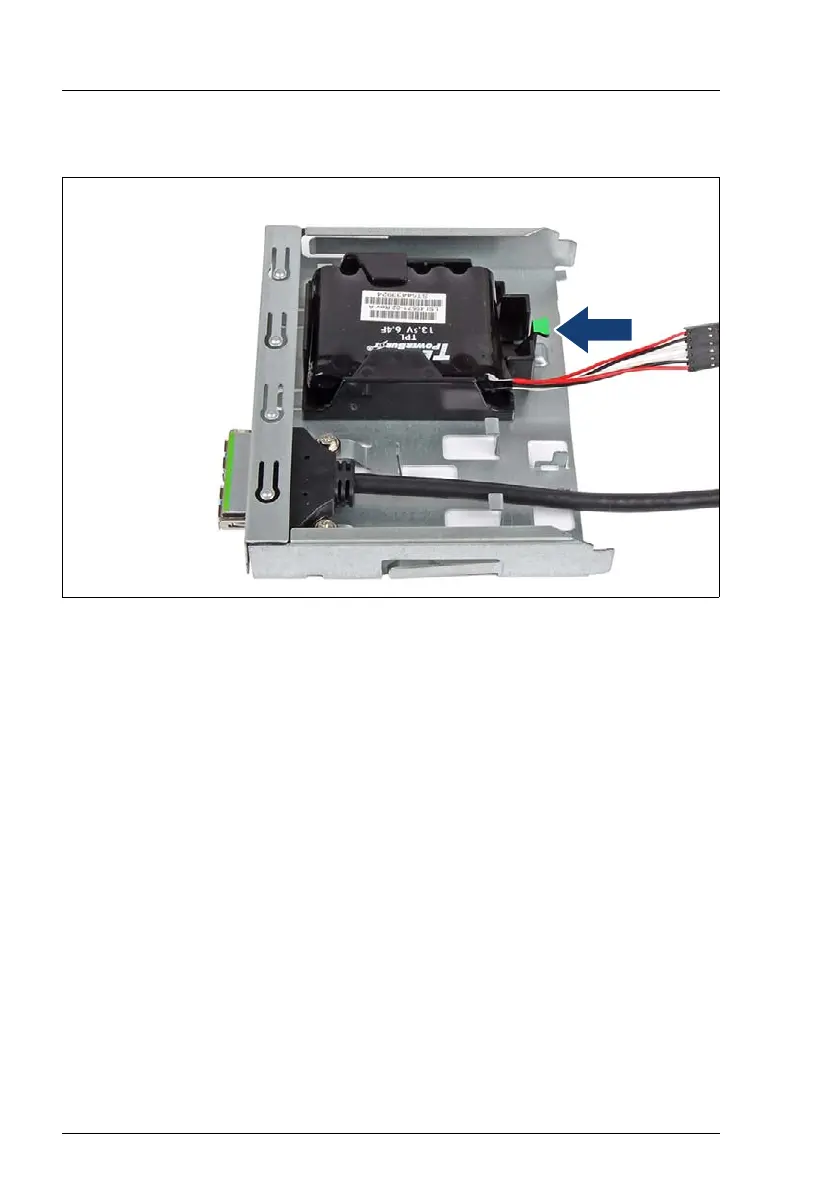

Figure 107: Installing the FBU (A)
Ê Insert the FBU into the FBU tray so that the three hooks rest in the tray and
slide it in the direction of the arrow until it locks in place.
