TX1320 M4 Upgrade and Maintenance Manual 255

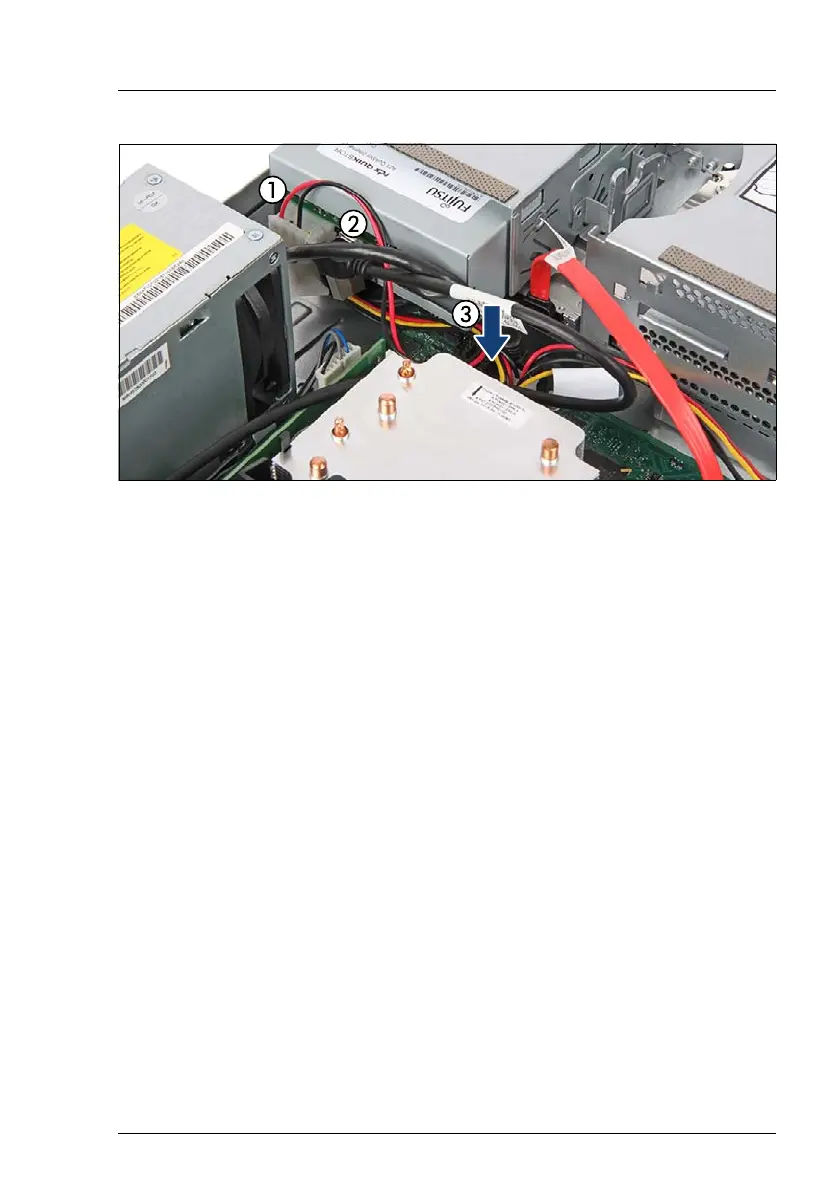

Figure 152: Connecting cables to the RDX drive
Ê Connect the connector "P4" of the power cable to the connector on the ODD
(1).
– Connect the USB cable to the RDX drive (2) and to the system board
connector "USB 2" (3).
Ê In case of a 8x 2.5-inch HDD/SSDS configuration the following step is
necessary: "Breakout and recess in the HDD fan module" on page 166.
Ê Prepare the second HDD fan module, see section "Breakout and recess
in the HDD fan module" on page 166.
Ê Install the HDD fan module(s), see section "Installing the HDD fan
module" on page 167.
12.3.1.4 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
Ê "Resuming BitLocker functionality" on page 87
I For the cable plan, see chapter "Appendix B" on page 341.
