104 Upgrade and Maintenance Manual TX1320 M4

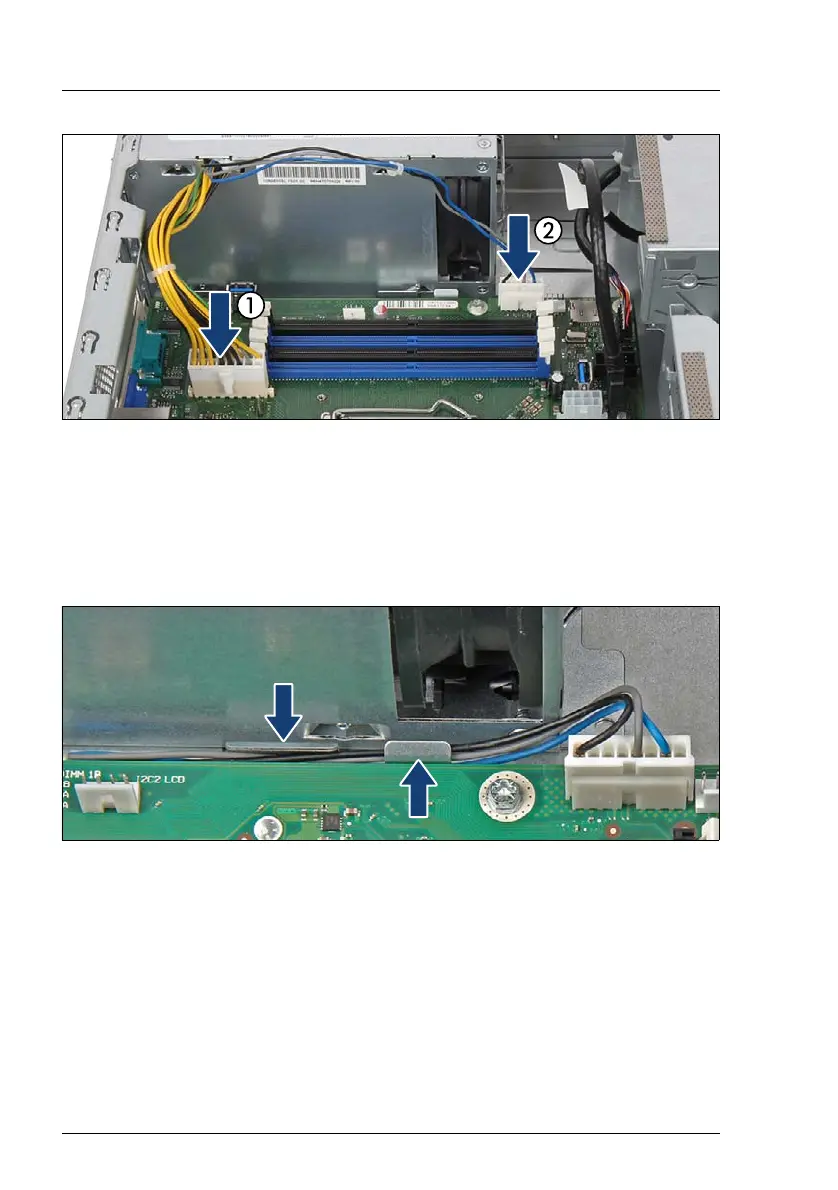

Figure 27: Connecting the power cables
Ê Connect the power cables to the system board:
Figure 28: Power cable routing
Ê Run the power signal cable between the two retainers (see arrows).
6.2.1.4 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
1 PSU power cable to connector "PWR MAIN".
2 Power signal cable to connector "PC98".
