Fujitsu PRIMERGY TX1320 M4 - Handling the 2.5-Inch HDD Cage; Removing the 2.5-Inch HDD Cage

64 Upgrade and Maintenance Manual TX1320 M4
Basic hardware procedures
4.8 Handling the 2.5-inch HDD cage
4.8.1 Removing the 2.5-inch HDD cage

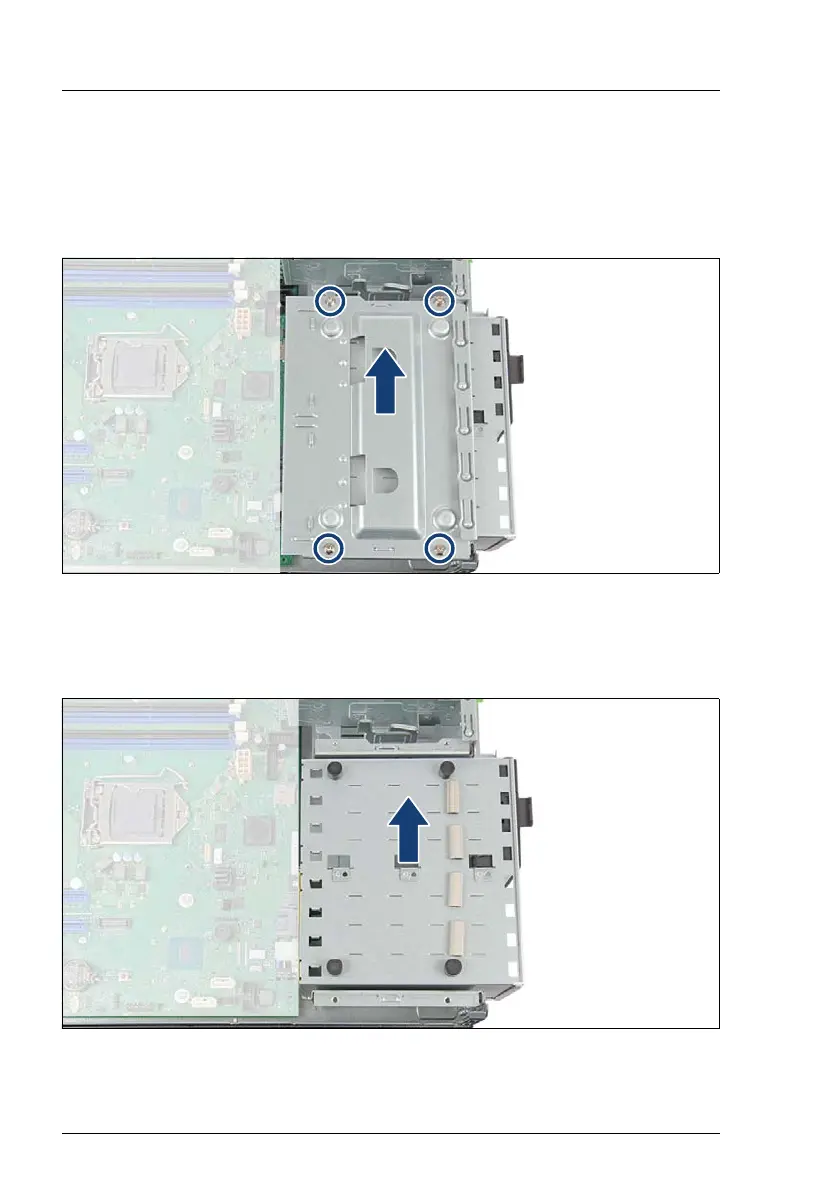

Figure 16: Removing the HDD cage (A)
Ê Remove the four screws (see circles).
Ê Lift the cover from the HDD cage.
Figure 17: Removing the HDD cage (B)
Ê Lift the HDD cage out of the chassis (see arrow).
