4.5.3 Installing the accessible drive bay cover

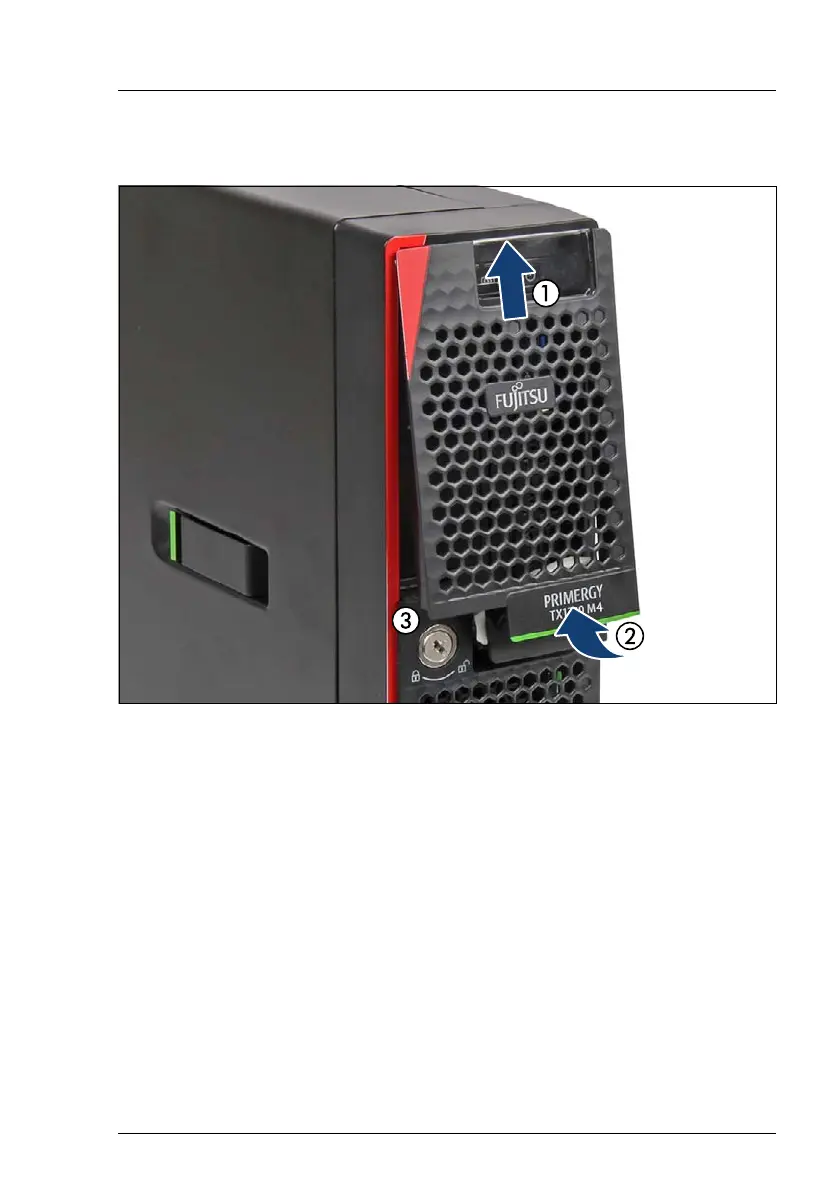

Figure 12: Installing accessible drive bay cover
Ê Insert the accessible drive bay cover to the upper side of the server cover
(1).
Ê Close the accessible drive bay cover (2).
Ê Turn the key clockwise (3).
I Depending on the setting of the green hook in the accessible drive
bay cover, you can open the accessible drive bay cover without
turning the key or only with turning the key.
