Fujitsu PRIMERGY TX1320 M4 - Connecting the Front USB Connector; Concluding Steps

TX1320 M4 Upgrade and Maintenance Manual 267
Front panel
13.2.1.4 Connecting the front USB connector

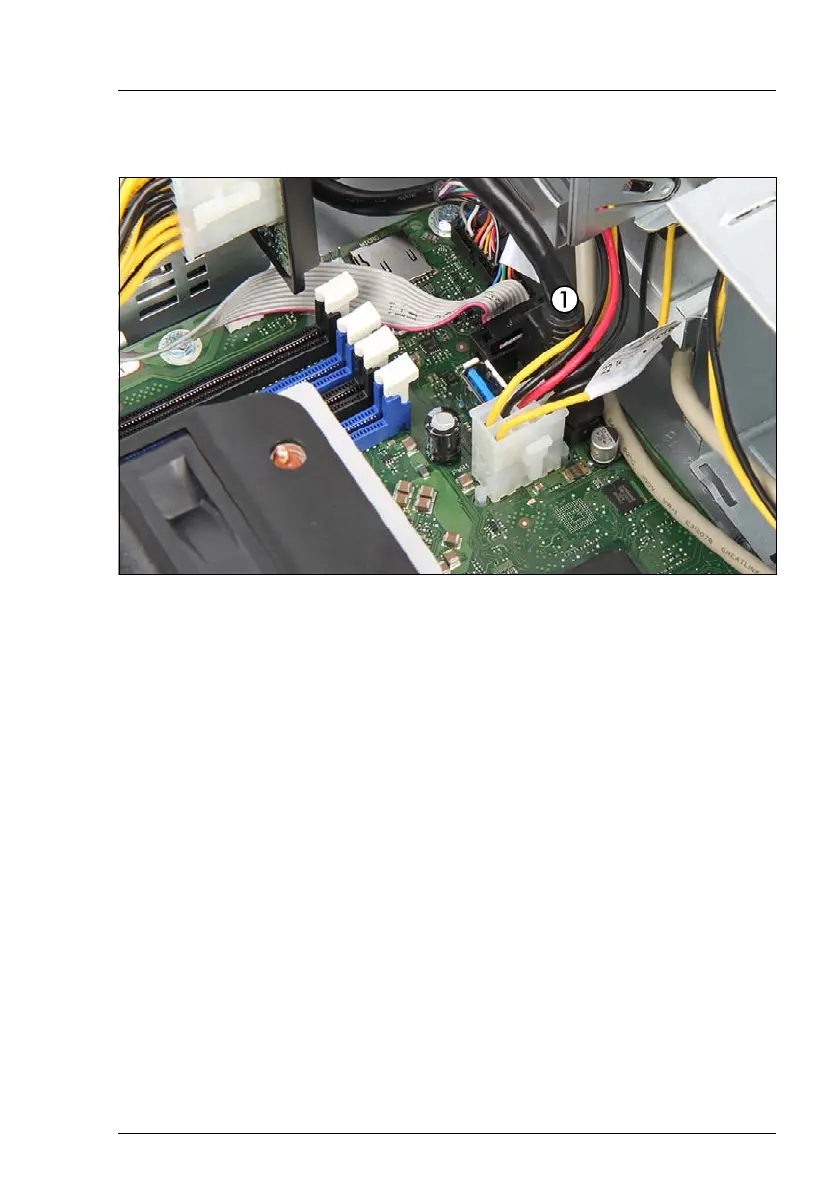

Figure 160: Connecting front USB connector cable
Ê Connect the front USB connector cable end to the connector "USB 3.1
FRONT" on the system board (1).
Ê If applicable, connect the FBU adapter cable to the TFM, see section
"Installing the new TFM" on page 194.
13.2.1.5 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
