15.1.3 Server interior

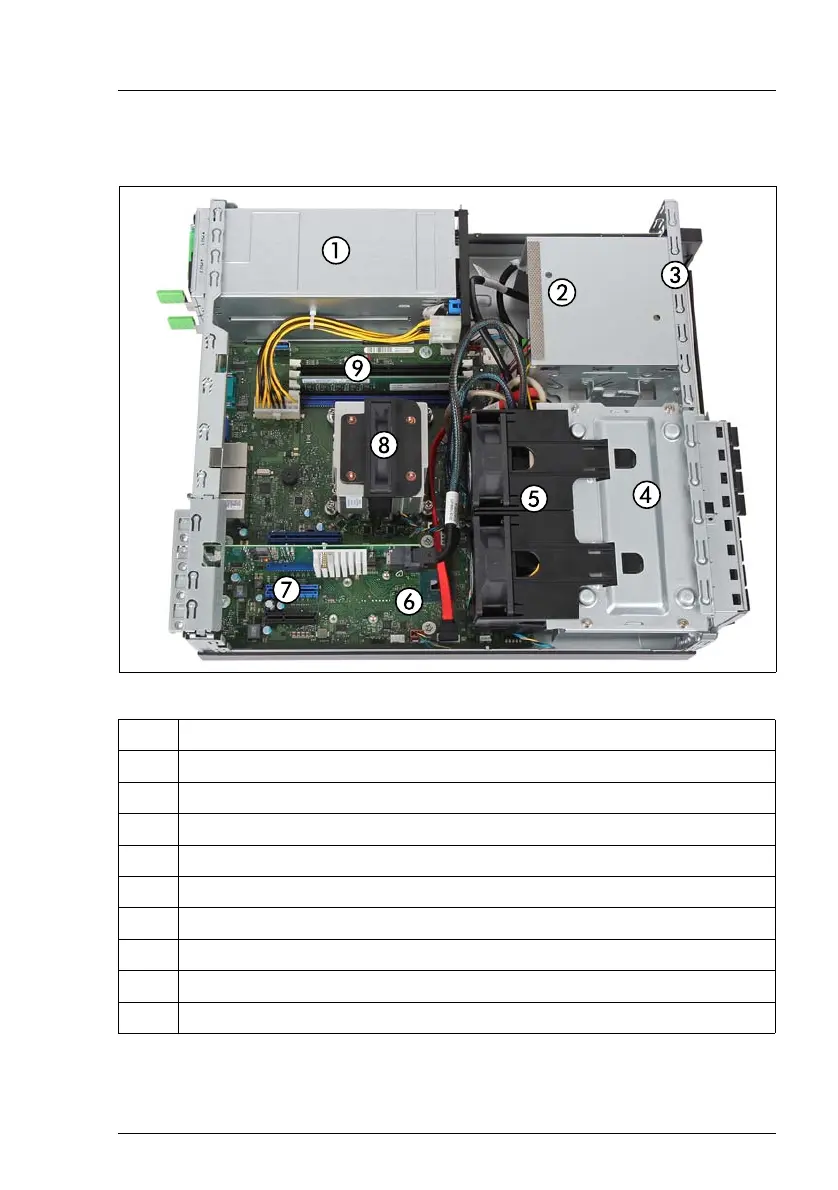

Figure 192: Interior (2.5-inch HDD variant with redundant power supply)
Pos. Component
1 PSU bays
2 Accessible drive bay
3 Front panel module bay
4 HDD/SSD/PCIe SSD bays
5 HDD fans
6 System board D3673
7 PCIe slots
8 CPU / heat sink
9 Memory modules
