316 Upgrade and Maintenance Manual TX1320 M4

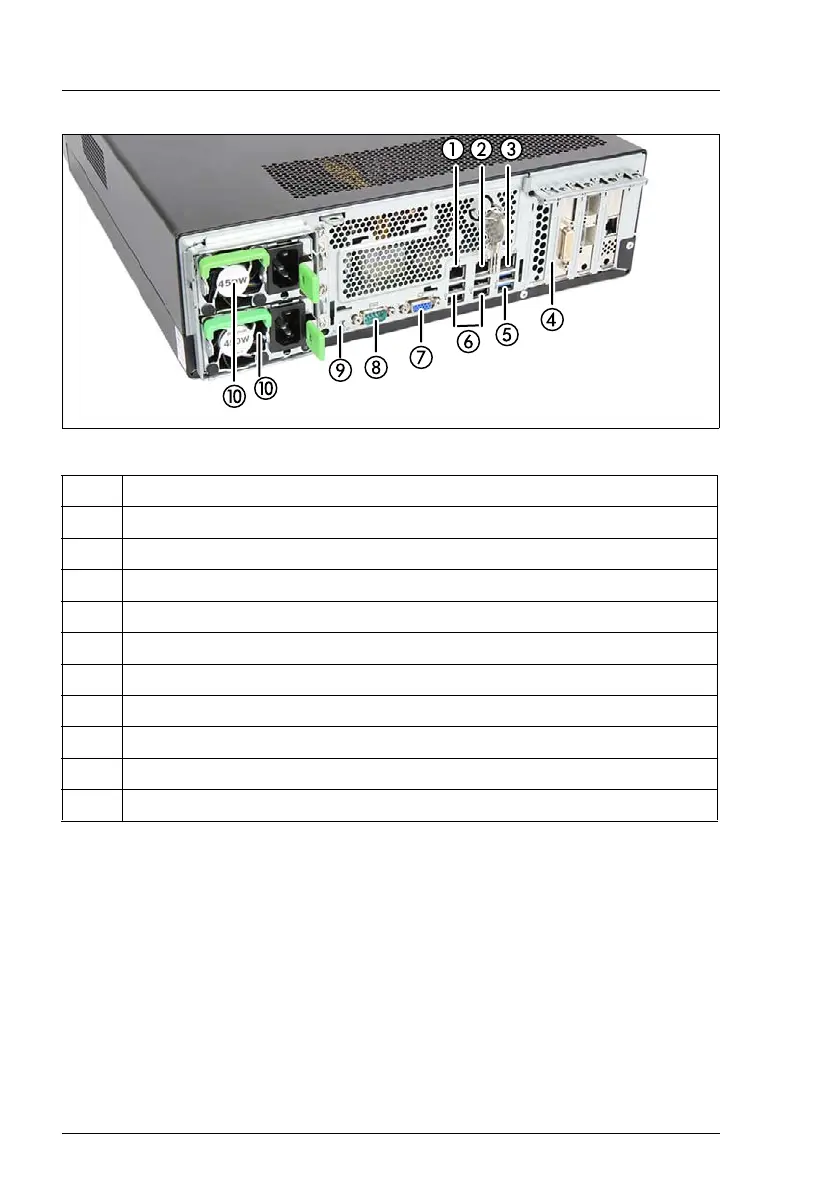

Figure 191: Rear side with redundant power supply
Pos. Component
1 Management LAN connector
2 Shared LAN connector (LAN1)
3 Standard LAN connector (LAN2)
4 4x Optional expansion card
5 2x USB 3.1 Gen 1 connector
6 4x USB connector 2.0
7 VGA video connector
8 Serial connector
9 CSS / Global Error / ID indicators
10 Up to 2 PSUs / dummy cover
