TX1320 M4 Upgrade and Maintenance Manual 281
System board and components
Otherwise the thin metal bar may break, rendering it impossible to
loosen the screw.
Ê Remove the TPM screw (3).
Ê Remove the TPM on the upper side of the system board.

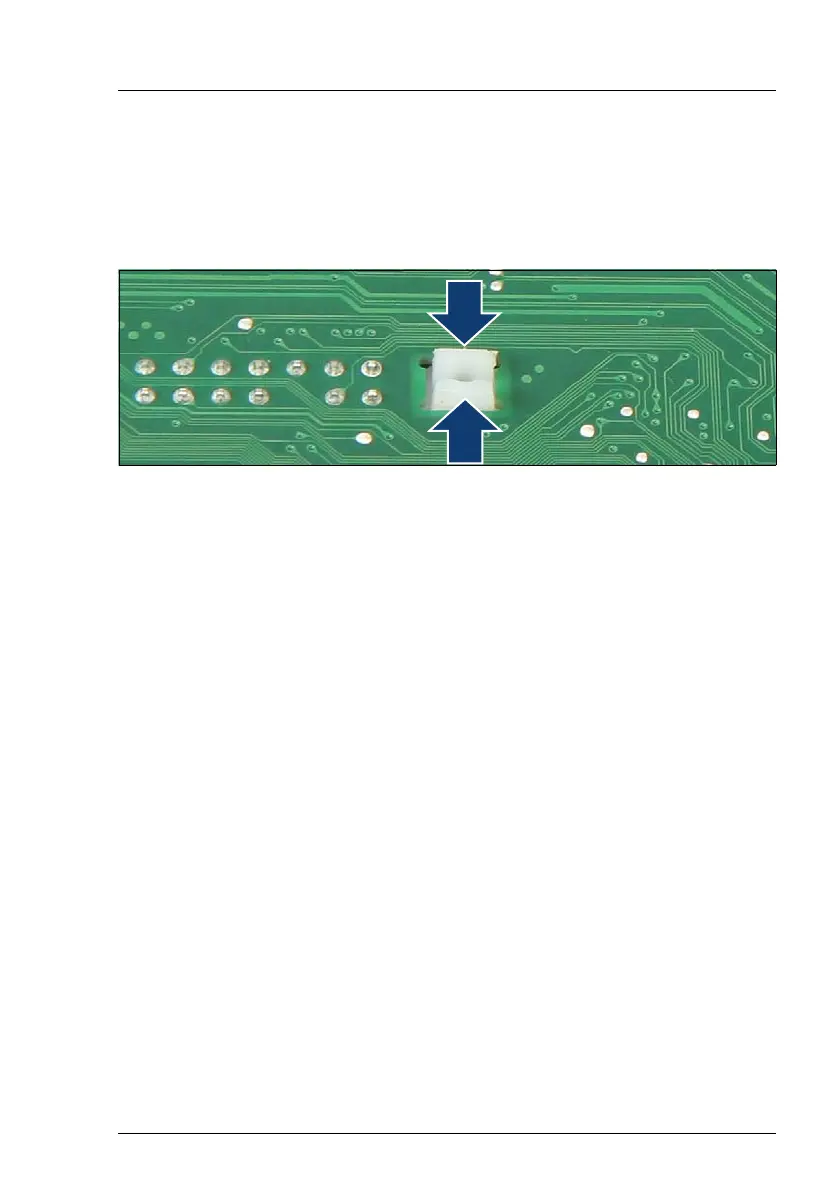

Figure 170: Removing the TPM spacer
Ê Using a flat nose pliers, press together the hooks on the TPM spacer and
remove it from the system board (2).
I If the TPM is to be replaced, the TPM spacer may remain on the
system board.
Ê Install the system board, see section "Installing the new system board" on
page 309.
14.3.2.3 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
