TX1320 M4 Upgrade and Maintenance Manual 285
System board and components

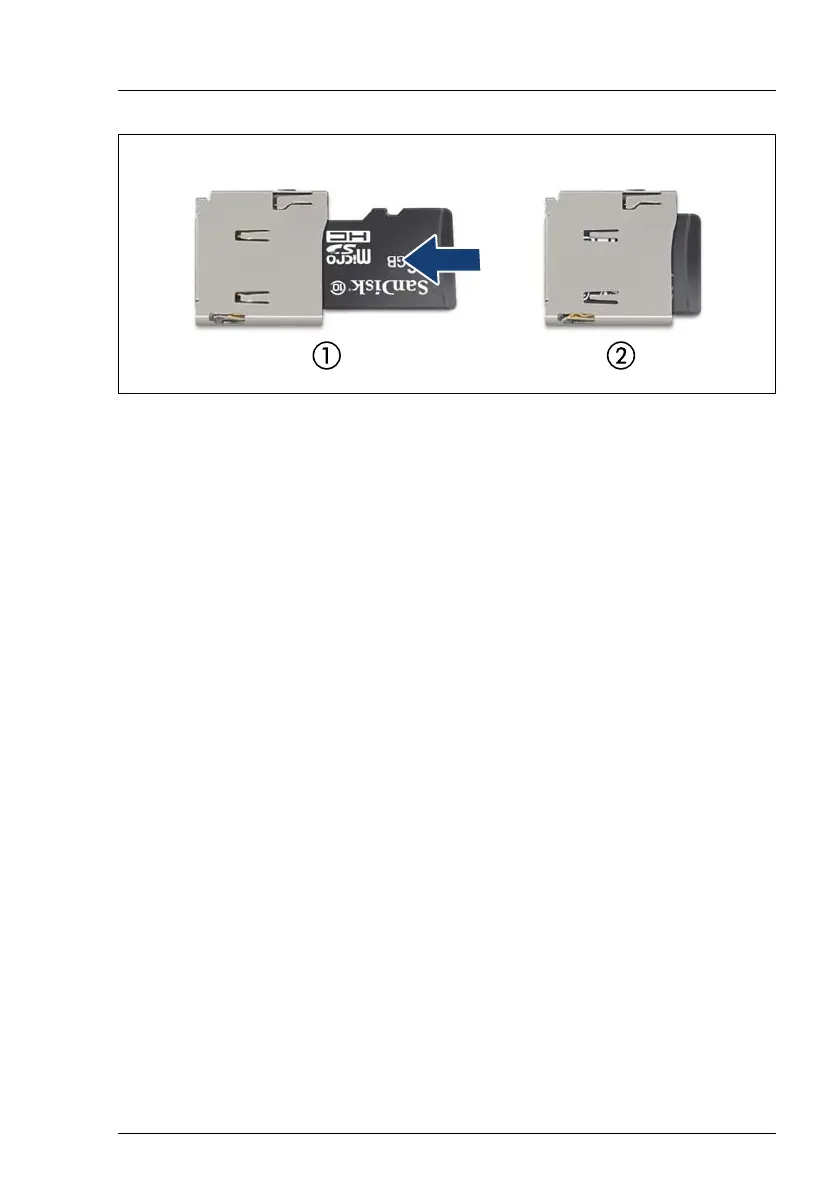

Figure 172: Installing the iRMC microSD card
Ê With the label facing up, insert the iRMC microSD card into the microSD
card slot (1) as far as it will go (2).
I The onboard position of the microSD card slot can be found in section
"Connectors and indicators on the system board" on page 319.
14.4.1.3 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
