50 Upgrade and Maintenance Manual TX1320 M4
Basic hardware procedures
4.3 Disconnecting the power cord
Standard power supply

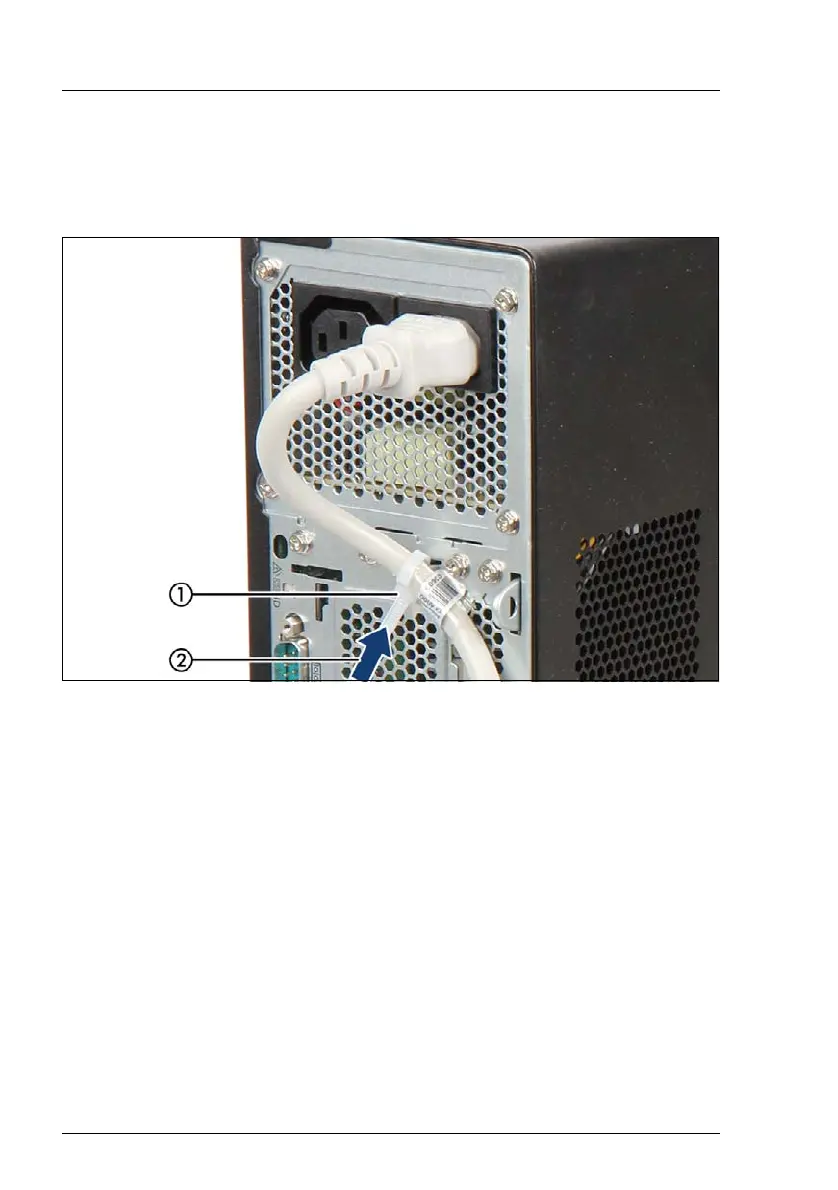

Figure 2: Removing the power cord from the PSU cable tie
Ê Pull out the locking lever on the PSU cable tie(s) (1) and loosen the loop (2).
Ê Disconnect the power cord from the PSU and remove it from the cable tie.
