TX1320 M4 Upgrade and Maintenance Manual 51
Basic hardware procedures
Redundant power supply

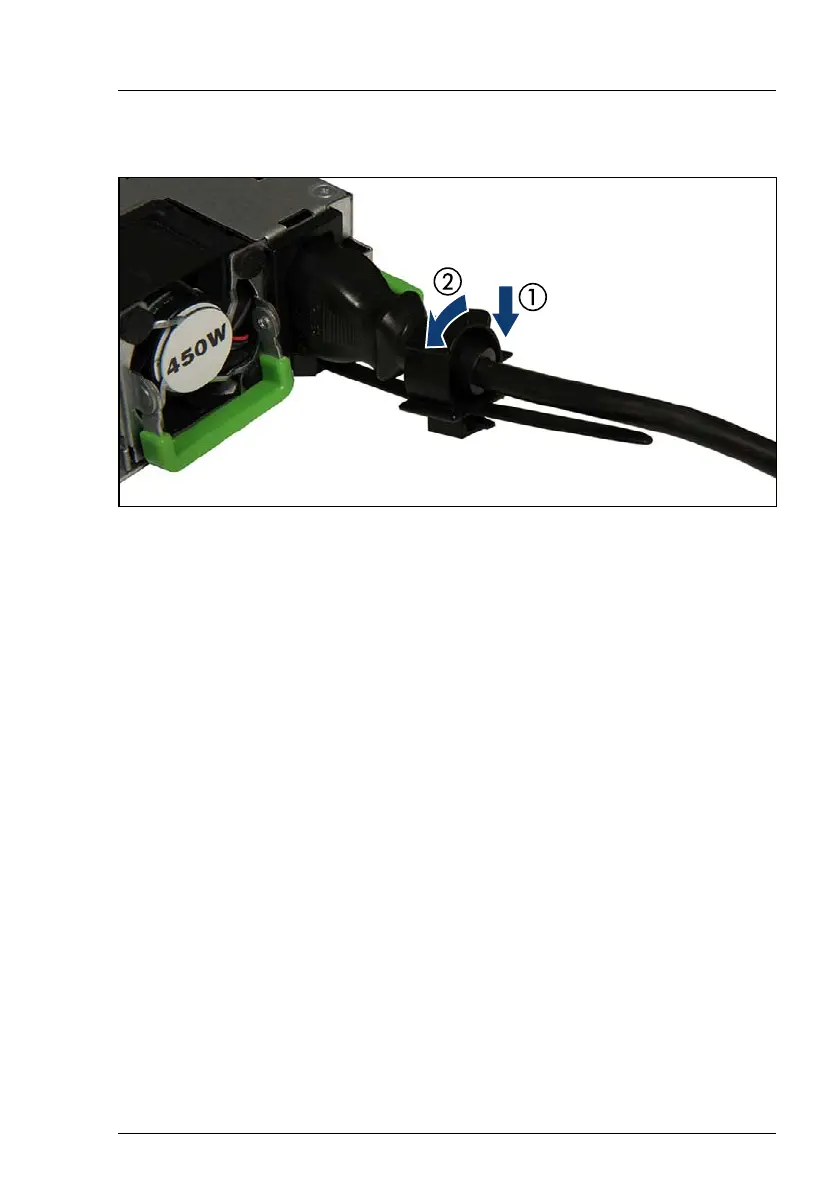

Figure 3: Unlocking the cable clamp of a PSU
Ê Press the cable clamp down until it disengages (1).
Ê Open the cable clamp (2).
Ê Disconnect the power cord from the PSU and remove it from the cable
clamp.
4.4 Getting access to the component
V CAUTION!
● Before removing or installing covers, turn off the server and all
peripheral devices. Also unplug all power cords from the outlet.
Failure to do so can cause electric shock.
● In order to comply with applicable EMC regulations (regulations on
electromagnetic compatibility) and satisfy cooling requirements, the
server must not run while the server cover is removed.
● For more information, see chapter "Important information" on
page 33.
