276 Upgrade and Maintenance Manual TX1320 M4
System board and components
14.3.1 Installing the TPM
14.3.1.1 Preliminary steps
Ê "Suspending BitLocker functionality" on page 67
Ê "Shutting down the server" on page 49
Ê "Disconnecting the power cord" on page 50
Ê "Getting access to the component" on page 51
14.3.1.2 Installing the TPM
I The onboard position of the TPM connector can be found in section
"Onboard connectors" on page 319.

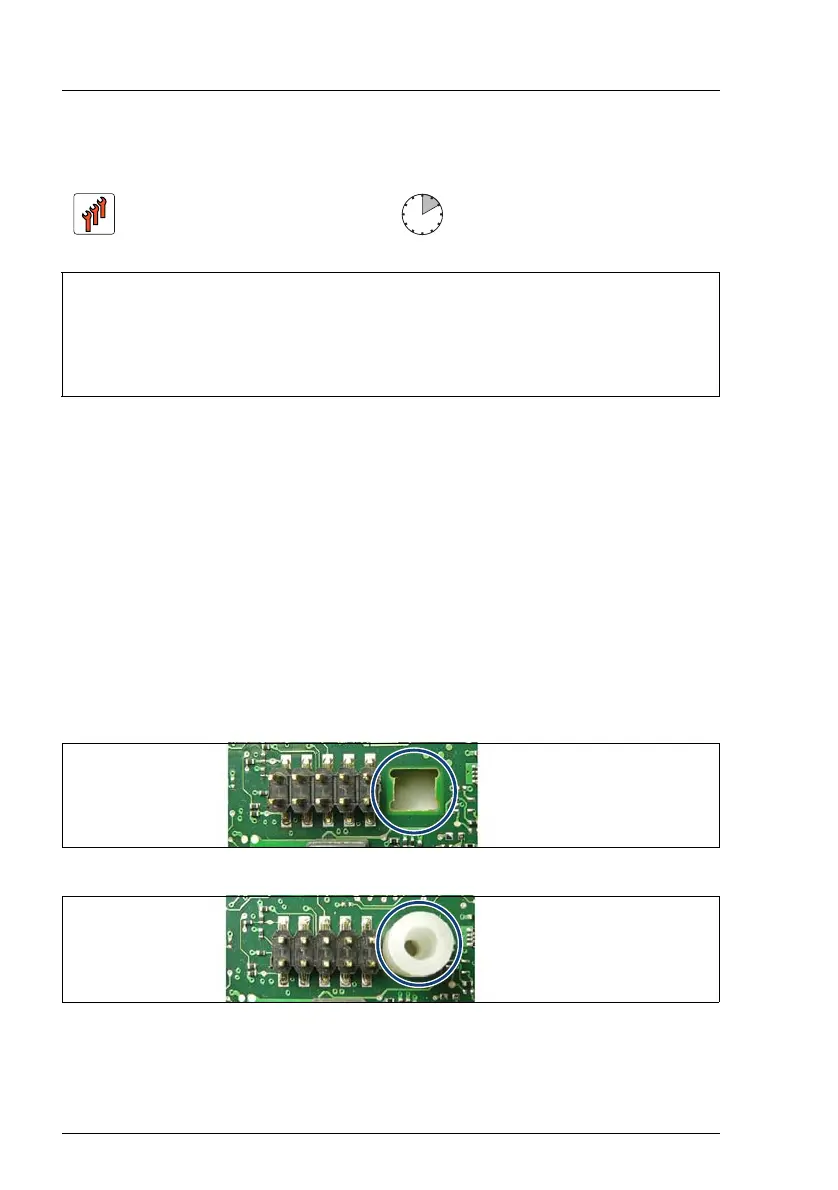

Figure 165: Position for the TPM spacer
Figure 166: Inserting the TPM spacer on the system board
Ê Insert the TPM spacer into the hole on the system board.
Field Replaceable Unit
(FRU)
Hardware: 5 minutes
Software: 5 minutes
Tools: – Bit screw driver
– TPM bit insert
(
*
)
(
*
)
For Japan:
– TPM module fixing tool (S26361-F3552-L909)
