Fujitsu PRIMERGY TX1320 M4 - Removing the M.2 SSD

TX1320 M4 Upgrade and Maintenance Manual 293
System board and components
14.5.2.2 Removing the M.2 SSD

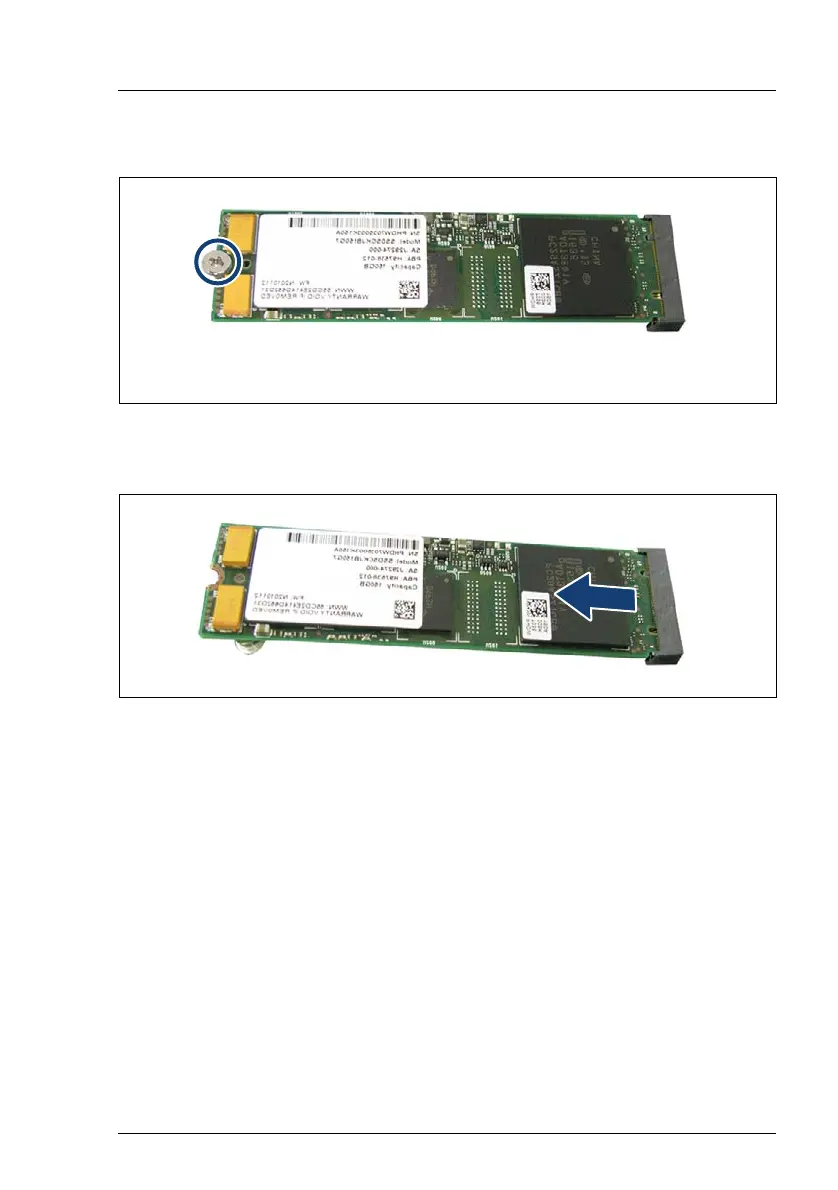

Figure 178: Removing the M.2 SSD (A)
Ê Remove the screw (see circle).
Figure 179: Removing the M.2 SSD (B)
Ê Pull the M.2 SSD out of its slot.
Ê If no new M.2 SSD will be installed:
Ê Fasten the screw to the corresponding hexagon stand-off (see orange
circles in figure 175 on page 289).
