Power supply unit (PSU)
6.5.3 Installing the upgrade kit

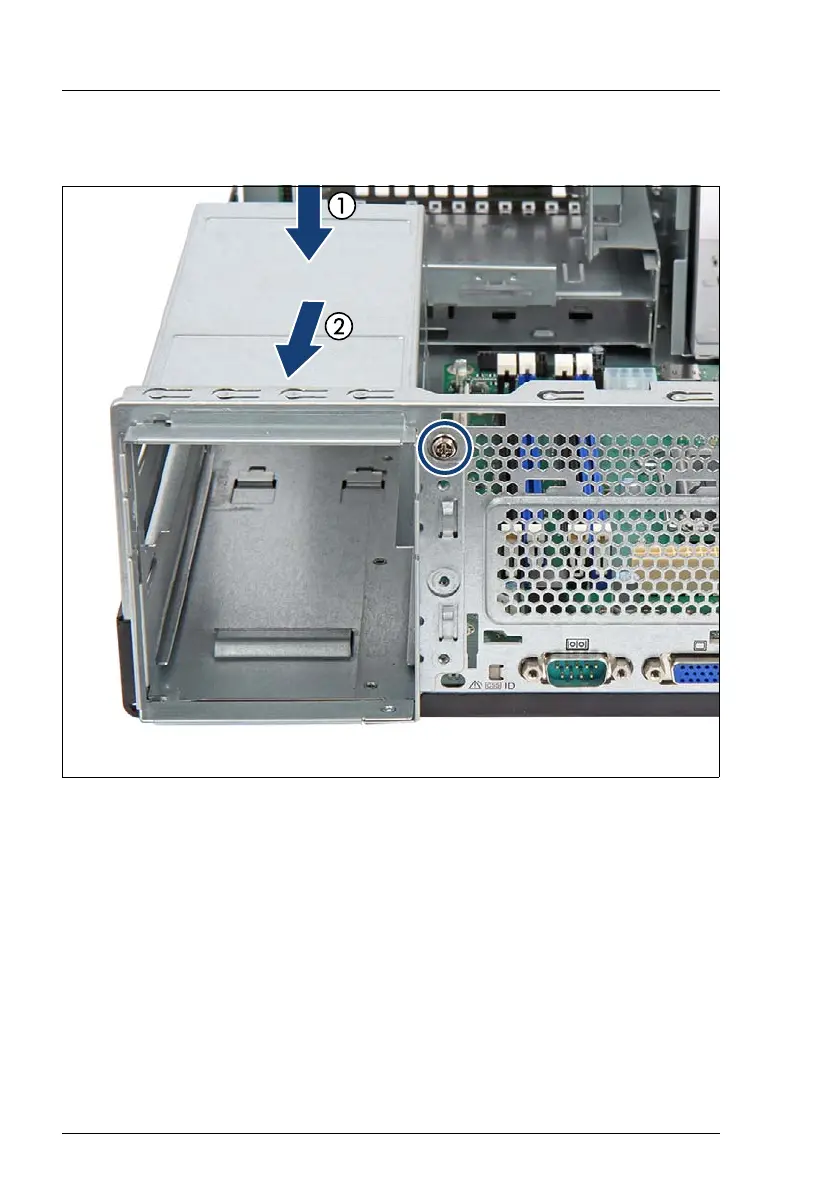

Figure 45: Installing the PSU cage (A)
Ê Take note of the two hooks (see figure 25).
Ê Insert the PSU cage into the chassis leaving a gap of about 3 cm to the rear
chassis wall (1).
Ê Ensure that the hooks on the chassis (see circle in figure 25) engages with
the notch on the lower surface of the PSU cage.
Ê Slide the new PSU cage towards the rear of the chassis (2).
Ê Fasten the PSU cage with one screws (see circle).
