TX1320 M4 Upgrade and Maintenance Manual 125

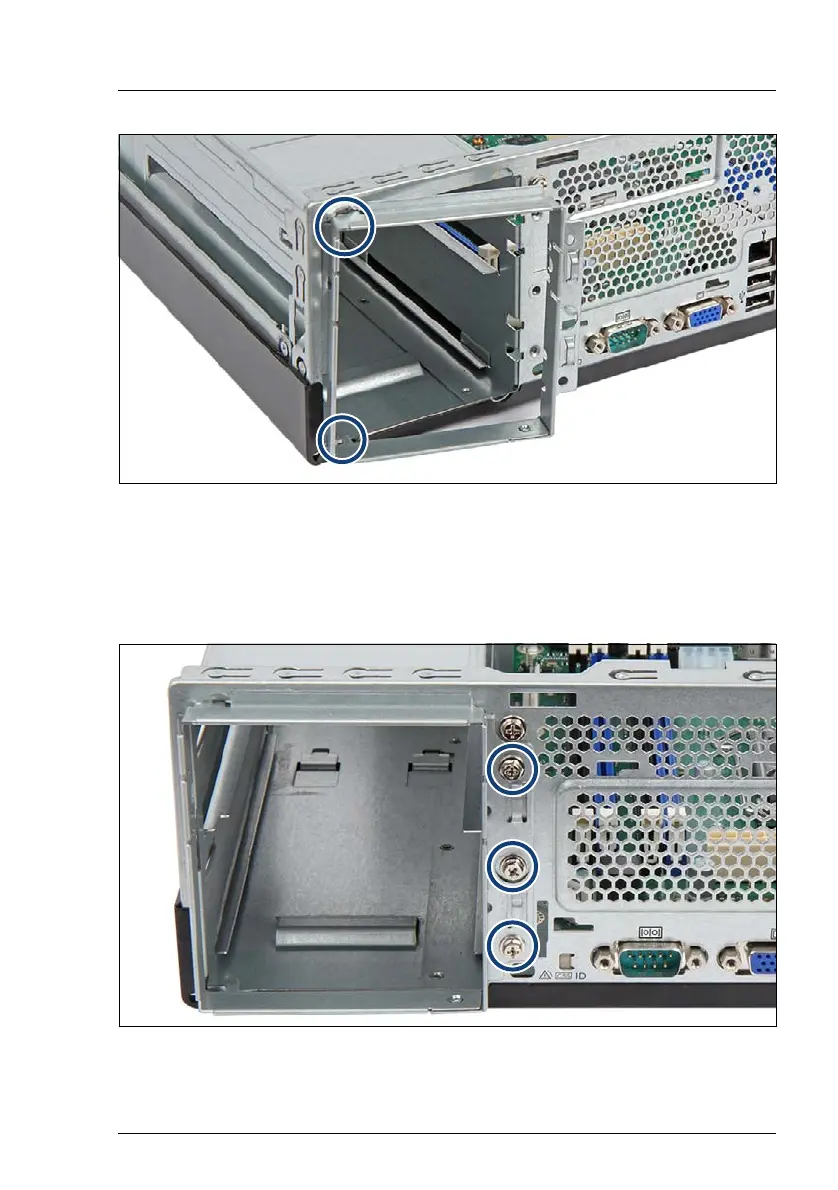

Figure 46: Installing the redundant PSU frame (A)
Ê Install the redundant PSU frame at a slight angle.
I The hooks (see circles) must engage in the recesses.
Figure 47: Installing the redundant PSU frame (B)
Ê Fasten the redundant PSU frame with three screws (see circles).
