TX1320 M4 Upgrade and Maintenance Manual 167
8.2.1.4 Installing the HDD fan module

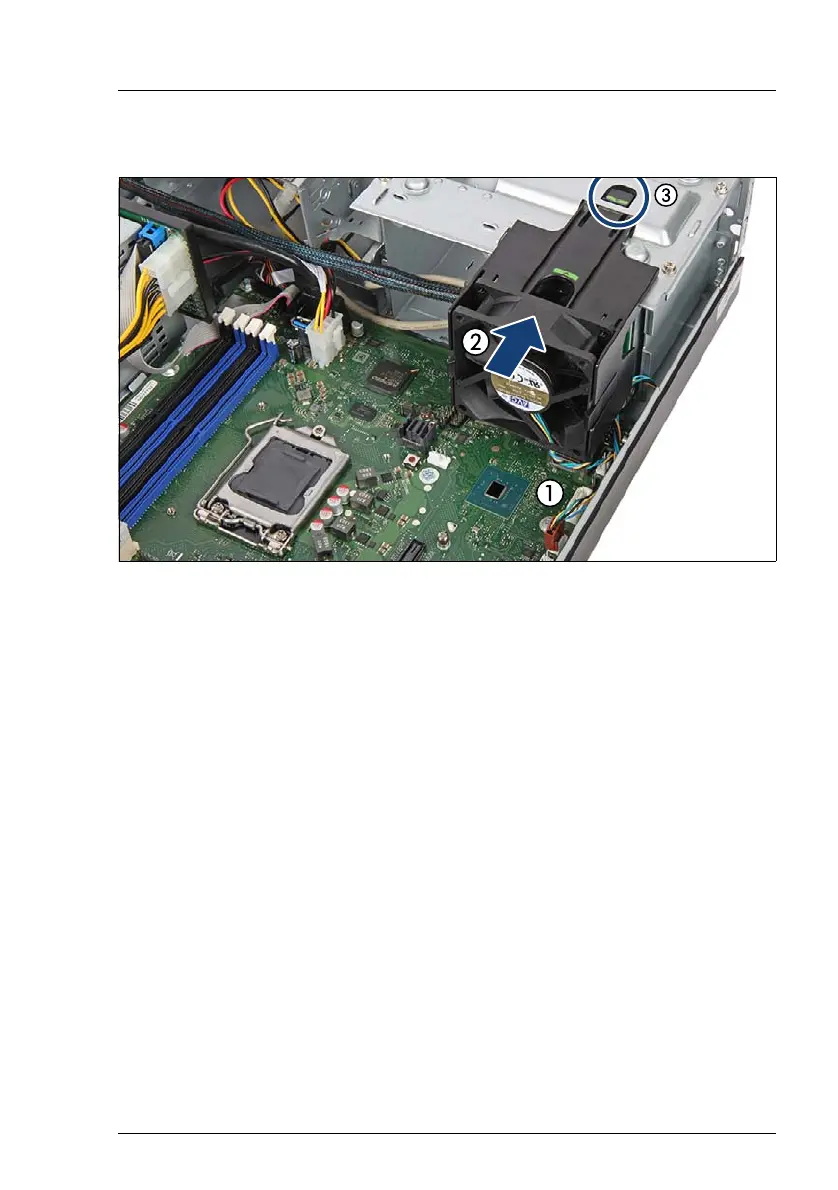

Figure 75: Installing the HDD fan module (2.5-inch)
Ê Connect the fan cable to system board connector "FAN2" (1).
I For the second HDD fan module use the system board connector
"FAN4".
Ê If applicable, run the SAS cable through the recess in the HDD fan, see
figure 74 on page 166.
Ê If applicable, run the Oculink cables through the breakout in the HDD fan,
see figure 74 on page 166.
Ê Attach the fan module on the top of the HDD cage (2) and slide it until it locks
in place (3).
8.2.1.5 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
Ê "Performing a fan test" on page 94
