60 Upgrade and Maintenance Manual TX1320 M4
Basic hardware procedures

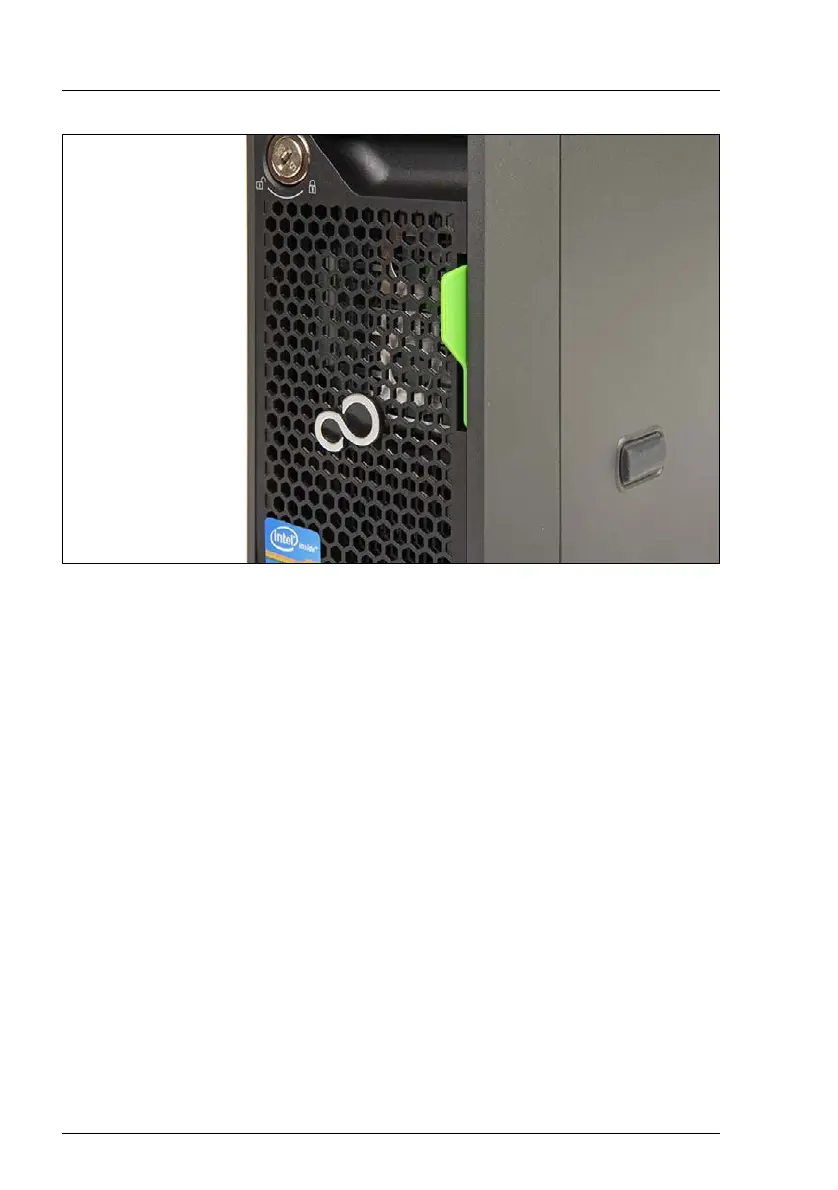

Figure 13: Installing the ID card
Ê Insert and slide the ID card into its slot until it locks in place.
4.6 Connecting the power cord
V CAUTION!
The server supports a mains voltage in the range of 100 V - 240 V. You
may only operate the server if its rated voltage range corresponds to the
local mains voltage.
Standard power supply
Ê Connect the power cord to the PSU.
Ê If applicable, connect the mains plug to a grounded mains outlet in the in-
house power supply network.
