TX1320 M4 Upgrade and Maintenance Manual 61
Basic hardware procedures

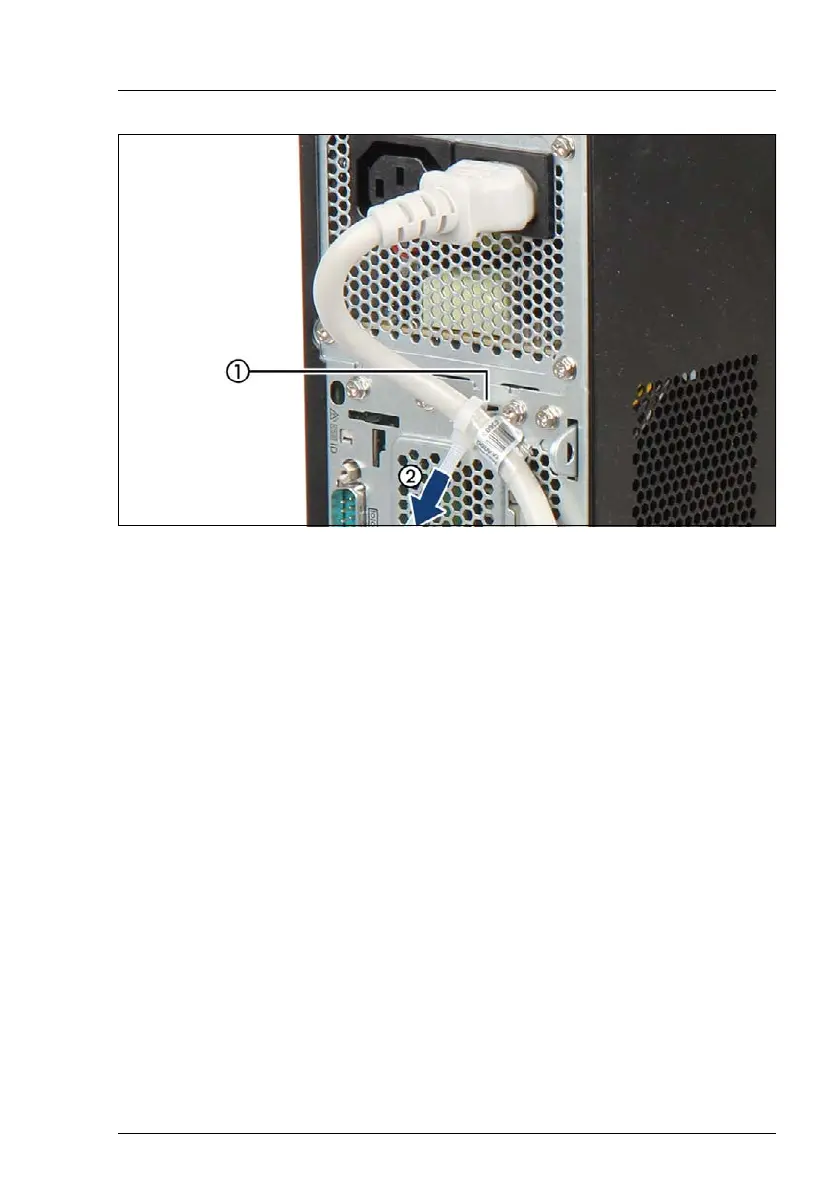

Figure 14: Securing power cord
Ê Thread the cable tie through the eye (1).
Ê Pull the cable tie tight to secure the power cord (2).
The insulated connector cannot now be disconnected from the server
accidentally.
You can loosen the cable tie by opening the small locking lever (2).
I It will take about 60 seconds until the server can be powered on.
