Fujitsu PRIMERGY TX1320 M4 - Handling Hdds or Ssds Without Installation Frame; Inch HDD;SSD and 2.5-Inch Installation Frame

TX1320 M4 Upgrade and Maintenance Manual 131
Hard disk drives (HDD) and solid state drives (SSD)
7.2 Handling HDDs or SSDs without installation
frame
7.2.1 2.5-inch HDD/SSD and 2.5-inch installation frame
Installing a 2.5-inch HDD/SSD in a 2.5-inch installation frame

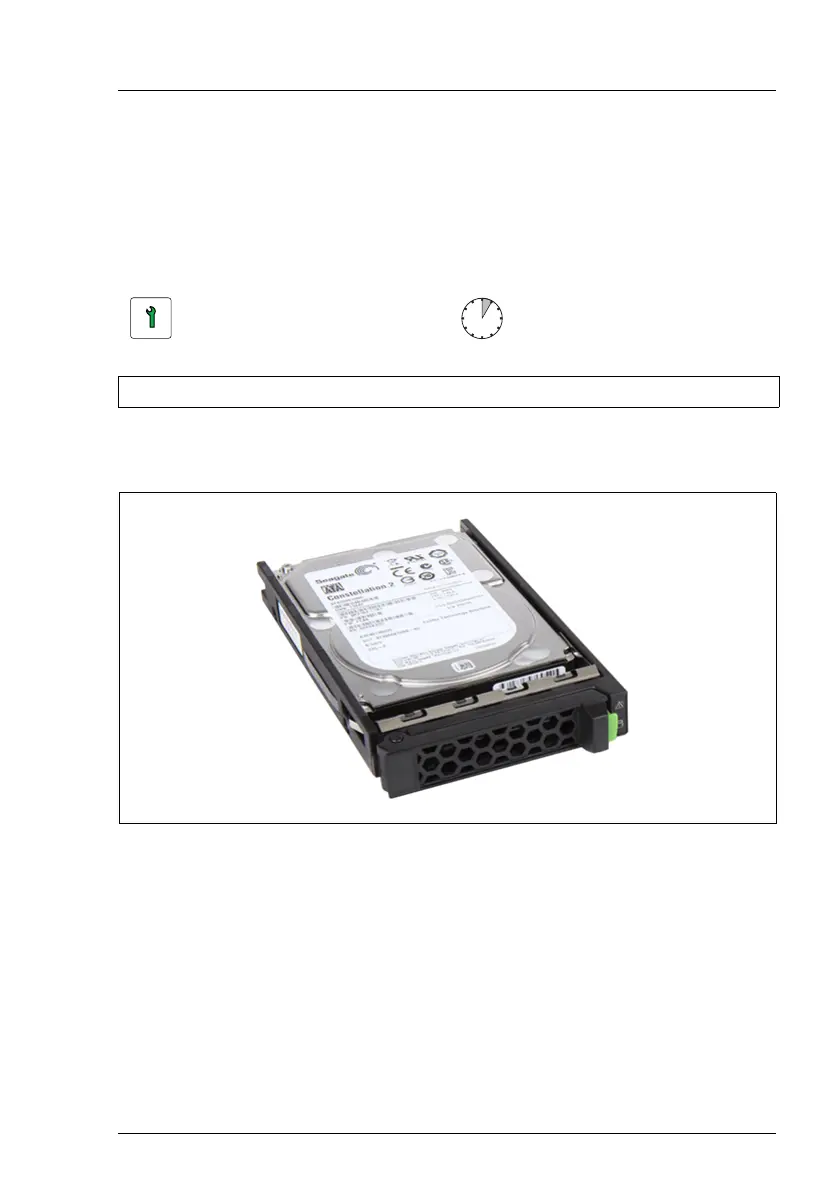

Figure 49: Installing the 2.5-inch HDD/SSD in the 2.5-inch installation frame (A)
Ê Lay the 2.5-inch HDD/SSD into the 2.5-inch installation frame as shown.
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: Phillips PH1 / (+) No. 1 screw driver
