Fujitsu PRIMERGY TX1320 M4 - Installing the RDX Drive

TX1320 M4 Upgrade and Maintenance Manual 253
Accessible drives
12.3.1.3 Installing the RDX drive

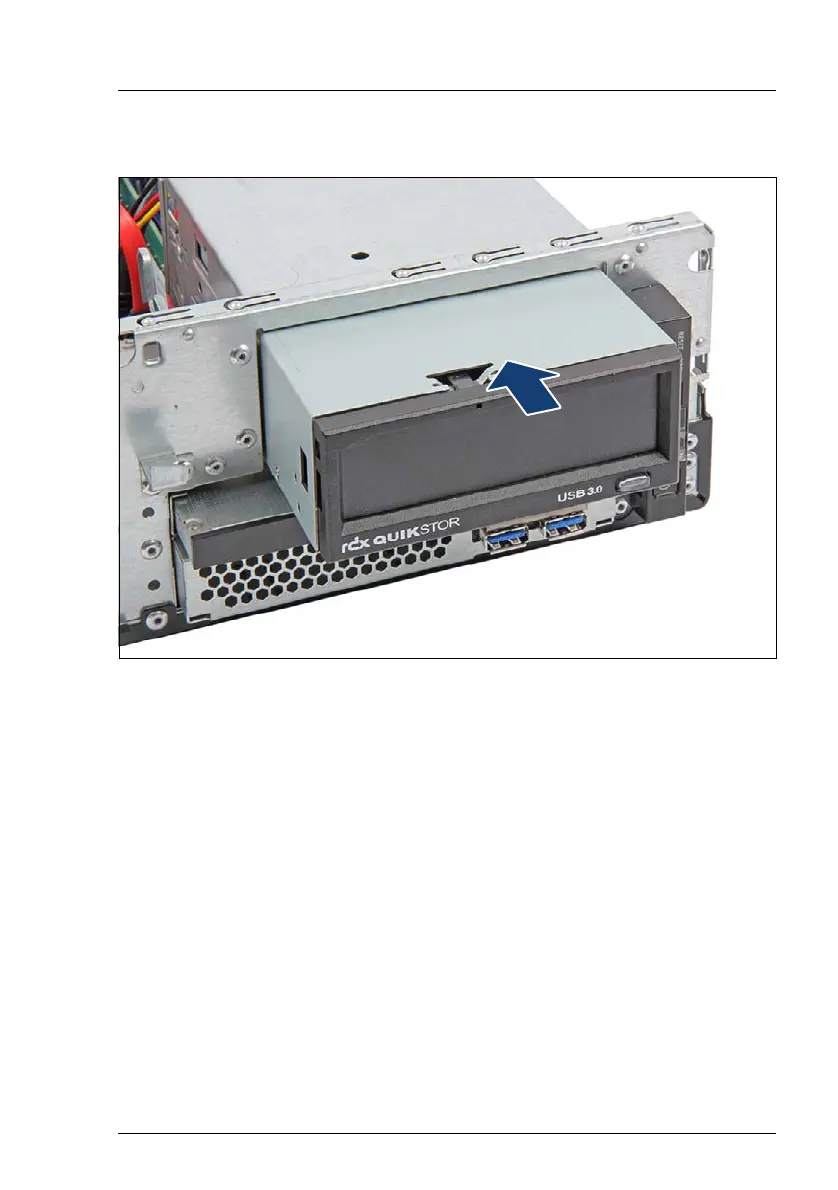

Figure 150: Installing the RDX drive (A)
Ê Insert the RDX drive into its installation bay.
Ê Carefully push back until the backup drive cover plate is flush with the front
panel.
