196 Upgrade and Maintenance Manual TX1320 M4
Expansion cards and backup units

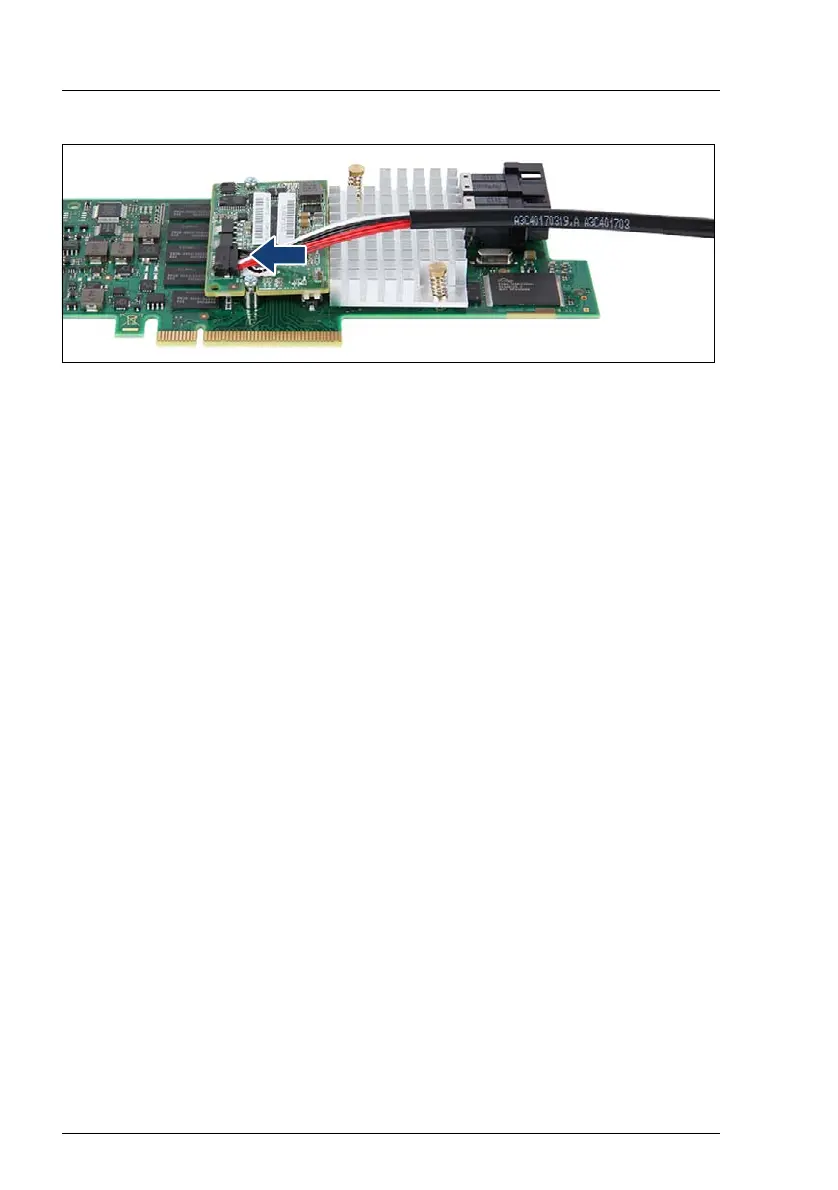

Figure 102: Connecting the FBU adapter cable
Ê Connect the FBU adapter cable to the TFM.
Ê Install the SAS RAID controller, see section "Installing expansion cards" on
page 180.
9.4.4.4 Concluding steps
Ê "Reassembling" on page 57
Ê If applicable, connect external cables to the expansion card.
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
