TX1320 M4 Upgrade and Maintenance Manual 139
Hard disk drives (HDD) and solid state drives (SSD)

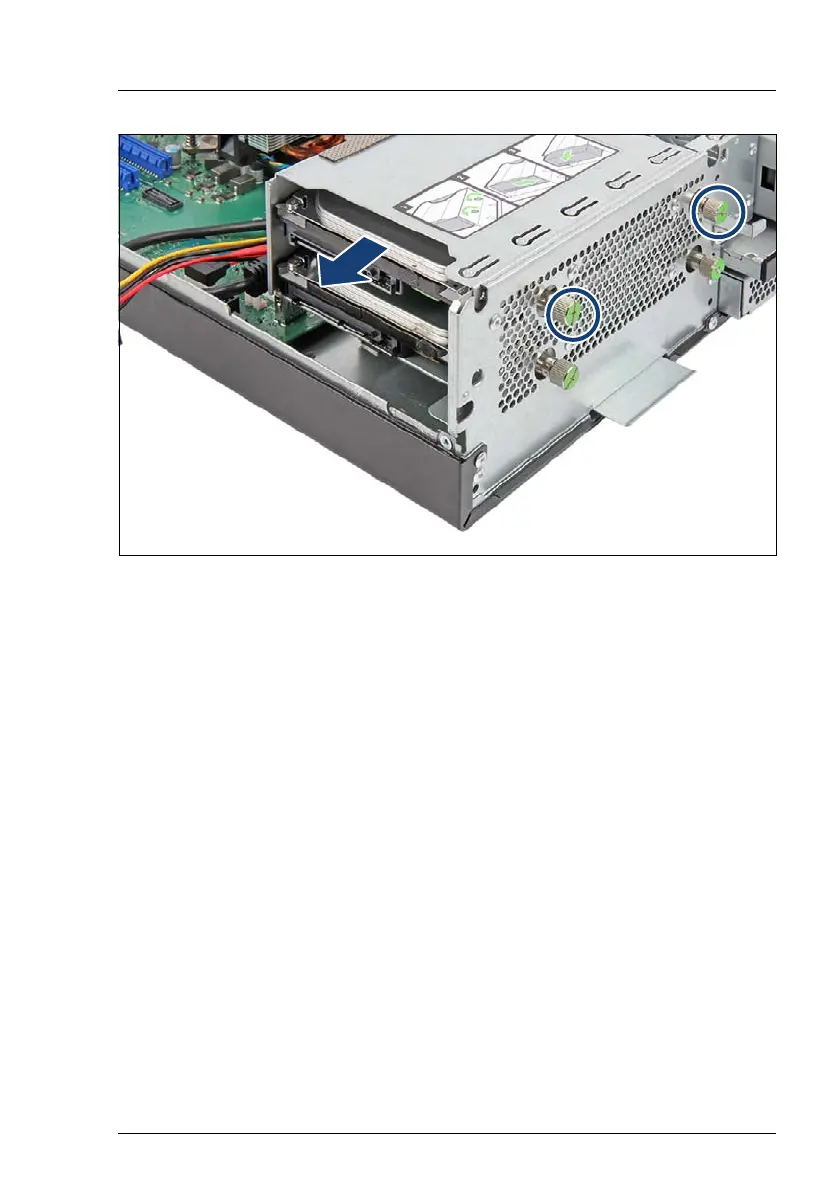

Figure 56: Removing the 3.5-inch non hot-plug HDD
Ê Loosen the two knurled screws from the HDD to be removed (see circles).
Ê Pull the non hot-plug HDD out of the bay.
7.3.3.3 Concluding steps
Ê "Reassembling" on page 57
Ê "Connecting the power cord" on page 60
Ê "Switching on the server" on page 63
