Fujitsu PRIMERGY TX1320 M4 - Onboard Settings

TX1320 M4 Upgrade and Maintenance Manual 337
Appendix A
15.3 Onboard settings

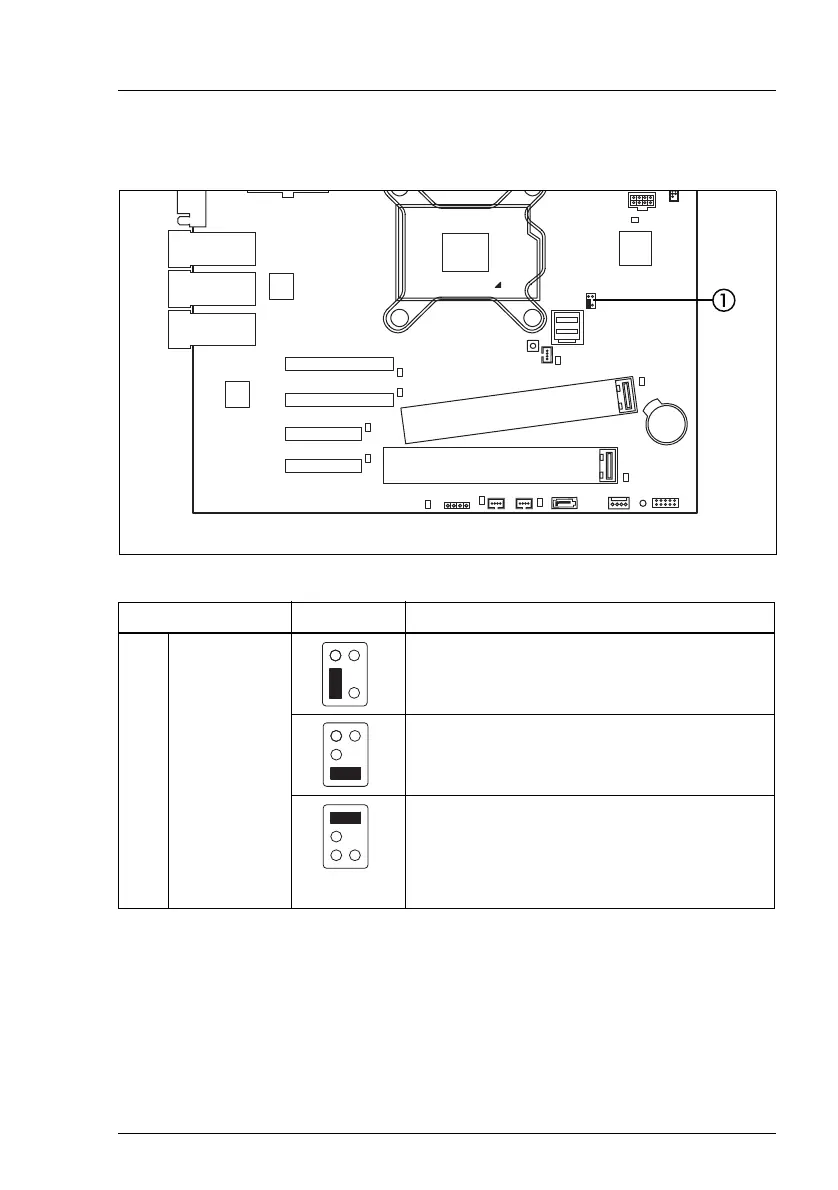

Figure 204: Onboard settings on system board D3673
Setting Status Description
1
PWD CLR /
BIOS-RCVR
Default (place to keep the jumper)
Recovery BIOS enabled
Password Clear enabled
This jumper setting will permanently delete
the current BIOS password and apply
default BIOS settings.
CPU
Slot 2
Slot 1
Slot 4
Slot 3
RCVR
PWD CLR
12
external connectors
LAN 1
Management
LAN / USB 2.0
LAN 2 /
USB 3.1 Gen 2
VGA
Shared LAN 1 /
USB 2.0
PWR1
Fron
iRMC
S5
Battery
TPM
IntrSATA ODD
FAN2
FAN3
HDD LED
Intel
i210
Intel
i210
Indicate
SATA
0-3
CSS
FAN1
M.2
SSD1
M.2
SSD2
