11.2.2 Removing the heat sink variant 1

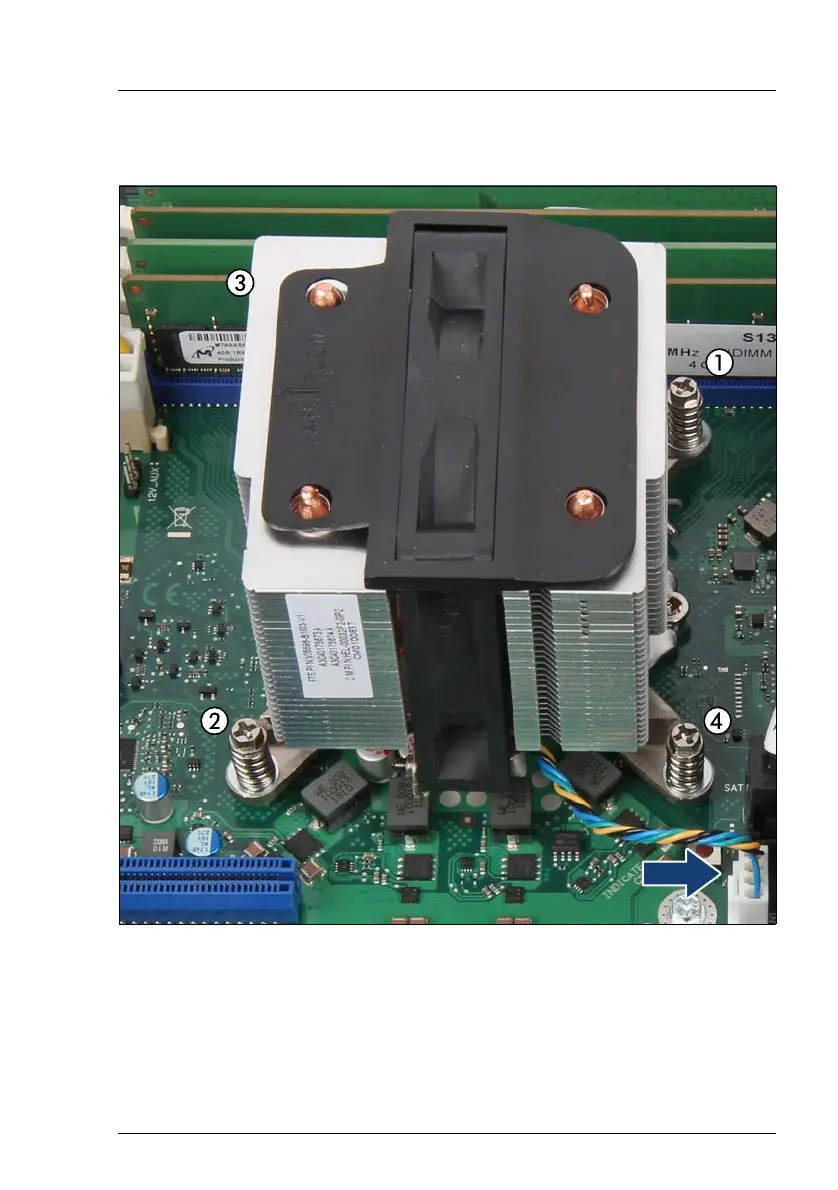

Figure 118: Removing the heat sink variant 1
Ê Disconnect the CPU fan cable from the system board (see arrow).
Ê Loosen the four captive screws on the heat sink in a crossover pattern (1-4).
Ê Carefully twist the heat sink back and forth to detach it from the CPU.
