15.2.2 Server front
15.2.2.1 Indicators on the front panel

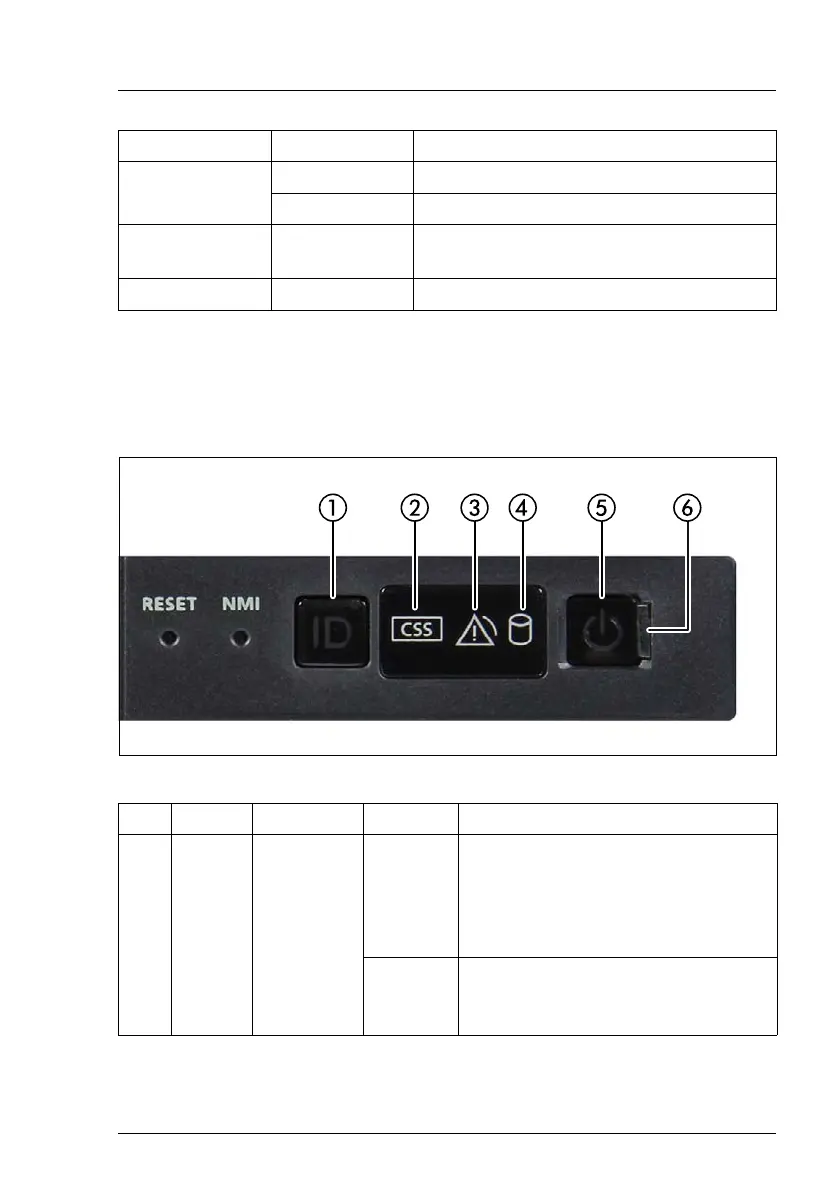

Figure 196: Indicators on the front panel
I - Fans off system fan running
orange on system fan failure
K - Standby
Power
orange on All standby voltages ok
O - M.2 SSD orange on M.2 SSD faulty
Pos. Label Indicator Status Description
1ID
ID
indicator,
see also
"iRMC-
related
status
signals" on
page 325
blue on
The server has been highlighted
using ServerView Operations
Manager, iRMC web interface or the
ID button on the front panel for easy
identification
flashing
blue
The server has been highlighted for
easy identification using the iRMC
with disabled local VGA output.
Indicator Status Description
