Fujitsu PRIMERGY TX1320 M4 - Installing a Memory Module

TX1320 M4 Upgrade and Maintenance Manual 211
Main memory
10.2.3 Installing a memory module

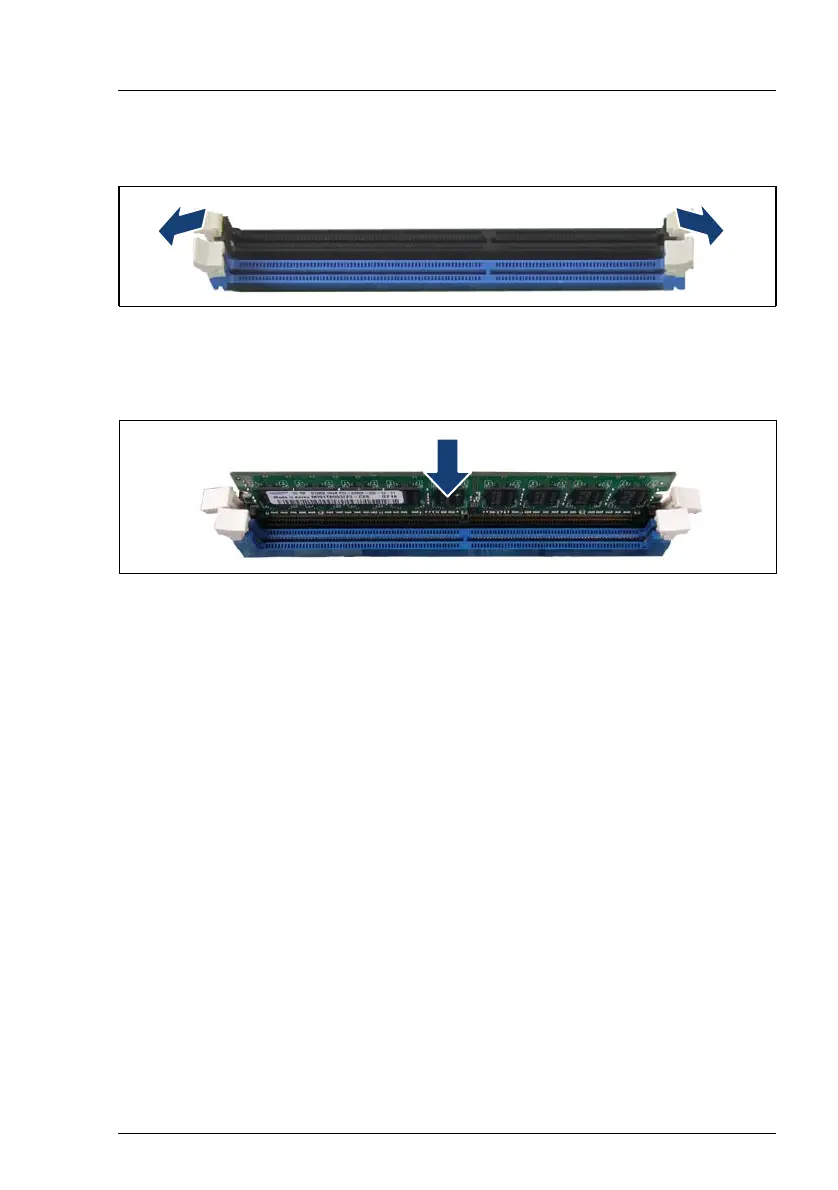

Figure 113: Opening the securing clips
Ê Press the securing clips on both sides of the memory slot concerned
outward.
Figure 114: Installing a memory module
Ê Align the notch on the bottom of the module with the crossbar in the slot.
Ê Press down on the memory module until the securing clips snap into the
cutouts at each end of the module.
